China professional shaftless screw conveyor for powder

FOB Reference Price:Get Latest Price
$50.00 - $500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
WLS200~500
Rotate speed:
24.5~33.7r/min
Blade width:
55~160mm
Screw pitch:
160~400mm
Blade height:
60~145mm
Blade thickness:
16~30mm
Weight per meter:
18~82kg
Color:
Customer's Request
Usage:
powder
Product name:
shaftless screw conveyor
product cataloge:
screw conveyor
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing(Wooden case, carbon case or pallet).
Port
Shanghai,Tianjin,Qingdao
Lead Time :
Shipped in 5 days after payment
Product Description

Description

1.Shafterlesss spiral conveyor with Simple structure,large capacity
2.Low noise, strong adaptability and easy operation
3. Easy for maintenance and long service life
4.ISO,TUV,SEW,FLENDER

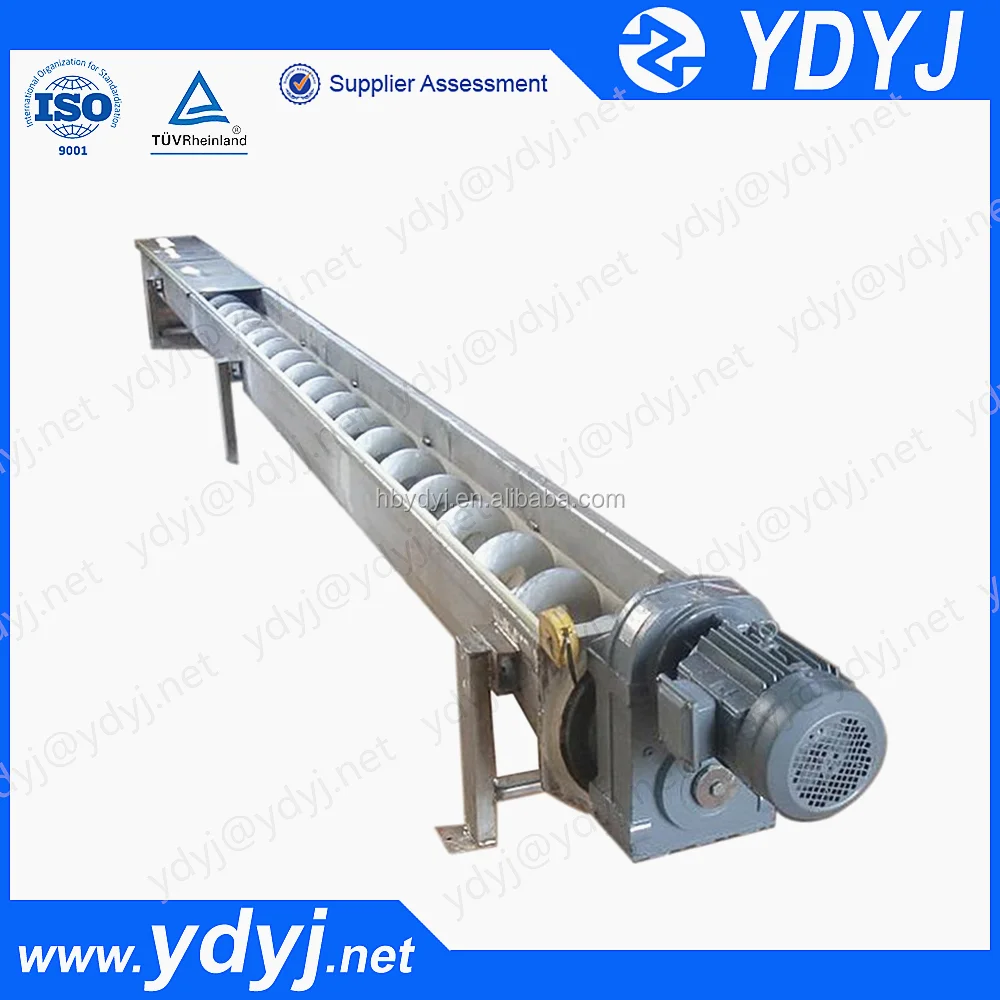

China professional shaftless spiral conveyor for powder


Introduction

Shaftless spiral conveyor works well when moving sticky products and large sized lumps. The shaftless blade often lies inside of a trough and is driven from one end by a flange or stub shaft. The other end may be open or attached to a stub shaft or mounting flange. The advantages include no intermediate bearings, no center pipe, lower maintenance costs, longer life, and increased screw capacity.
Applications
Shaftless spiral conveyor is a new type equipment that designed and researched by ourselves it is according to the actual demand of building industry , metallurgy ,food and other industries .The screw converyor price is widely used in materials which are sticky ,easy winding ,easy block ,and bad liquidity

Technical Parameters of Shaftless spiral Conveyor

Model

Width of blade(mm)
Screw pitch(mm)
Rotate speed(r/min)
Delivery speed(m3/h)

WLS200

55

160

33.7

4

WLS250

75

200

33.7

8

WLS300

100

240

33.7

12

WLS350

120

280

24.5

20

WLS400

135

320

24.5

28

WLS500

160

400

24.5

40

Main features

a)Shaftless spiral conveyor are suitable for continuously conveyor materials which are sticky ,easy winding ,easy block ,and bad liquidity .
b)The temperature of materials can reach up to 100.
c)The biggest dip angle can be up to 45 °.

Certifications
Detailed Images

Machine Parts

Name: Shaftless screw blade

Brand: YIJI

Original: China

It consists of ordinary carbon steel, alloy steel, manganese steel, stainless steel and other materials. Can be used for the transmission of slag, mud, sand and water separation, press to strengthen the four series, such as the more than 1 thousand specifications of the non axis spiral

Main Features

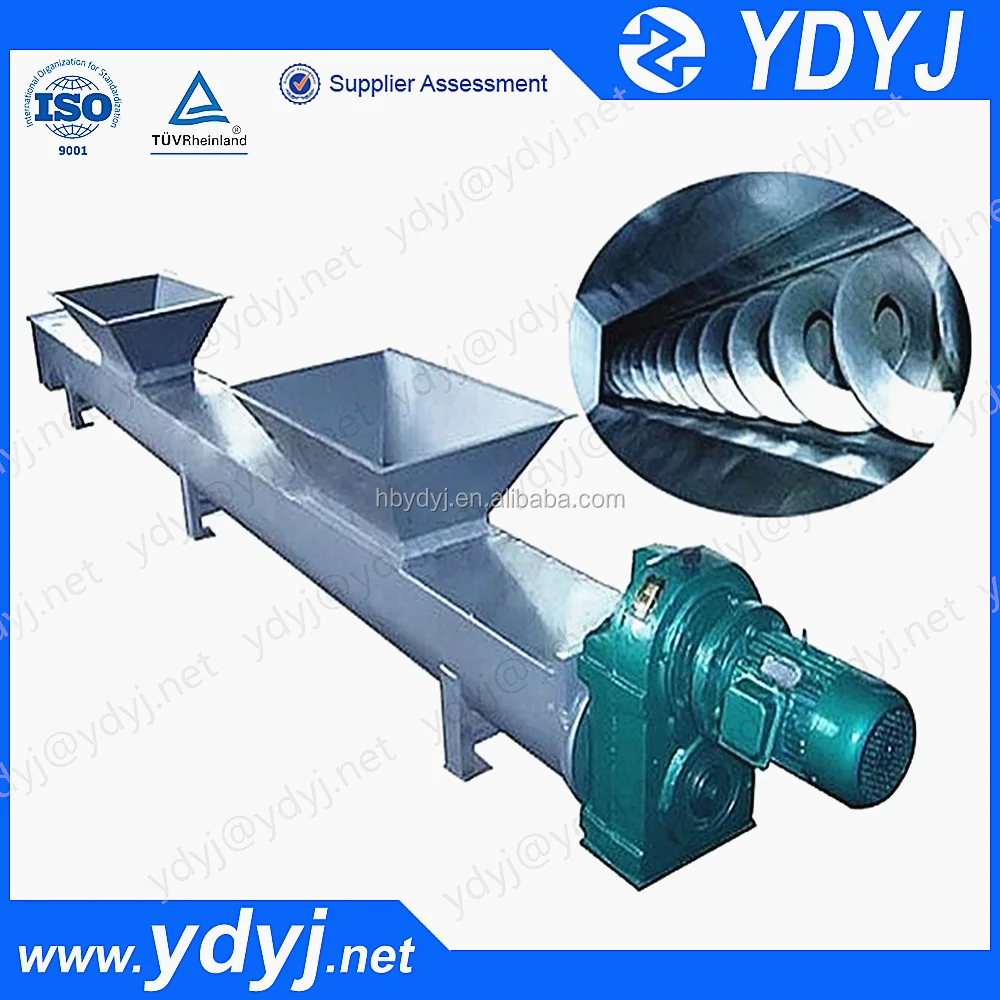

Name: Shaftless spiral conveyor
Brand: YIJI
Original: China
1, good environmental protection performance.2, large conveying capacity, throughput is the same diameter shaft screw conveyor 1.5 times. 3.turn from, low energy consumption, low discharge opening is not blocked. 4, Large convey distance, a single conveyor length up to 60~70m. 5, compact structure, space saving, beautiful in appearance, convenient in operation, economic durable.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details
The closed package is iron box(Size: L*W*H).
Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.
Packaging
Size
600 (L) * 300 (W) * 270(D)
Weight
10 T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).

We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
Product Process
