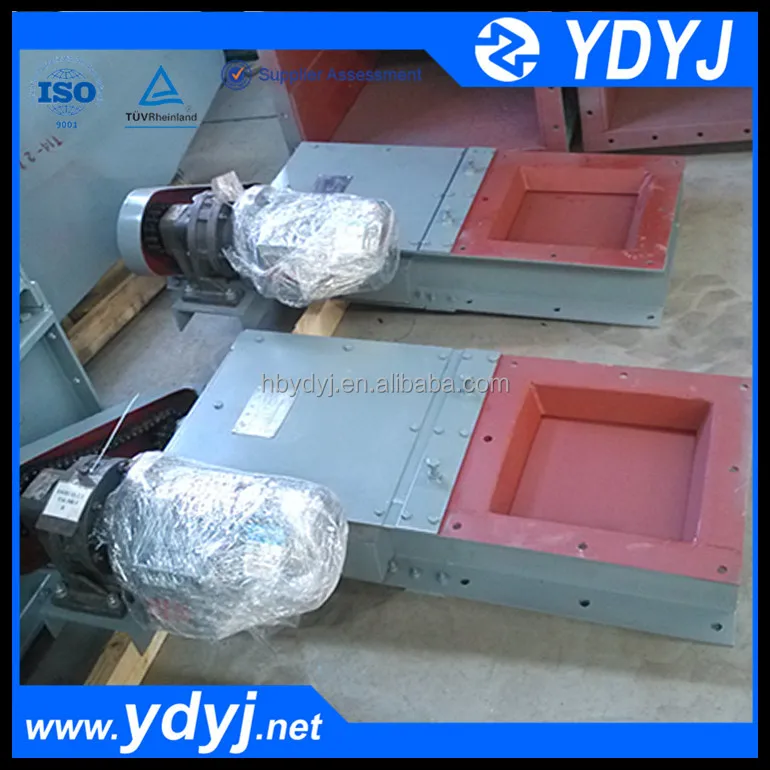

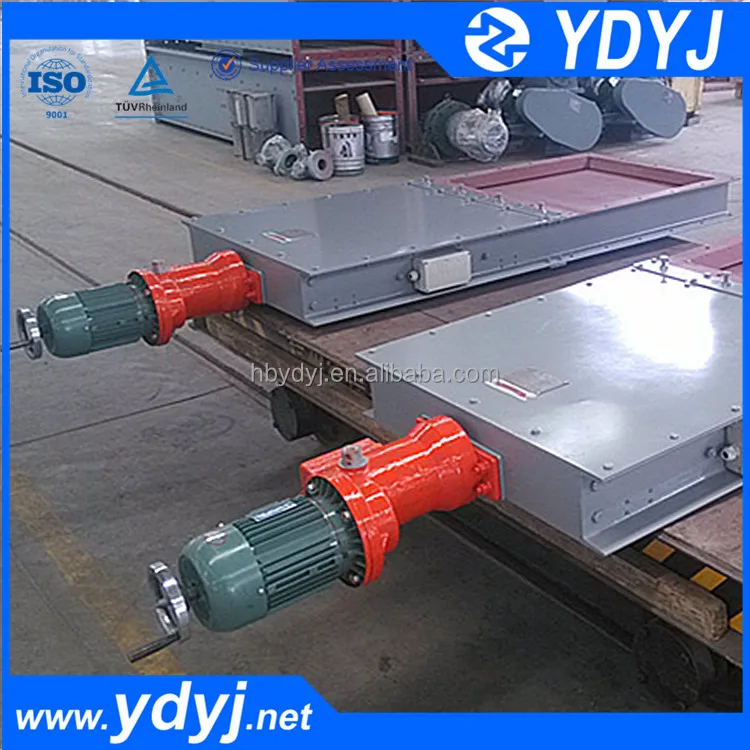

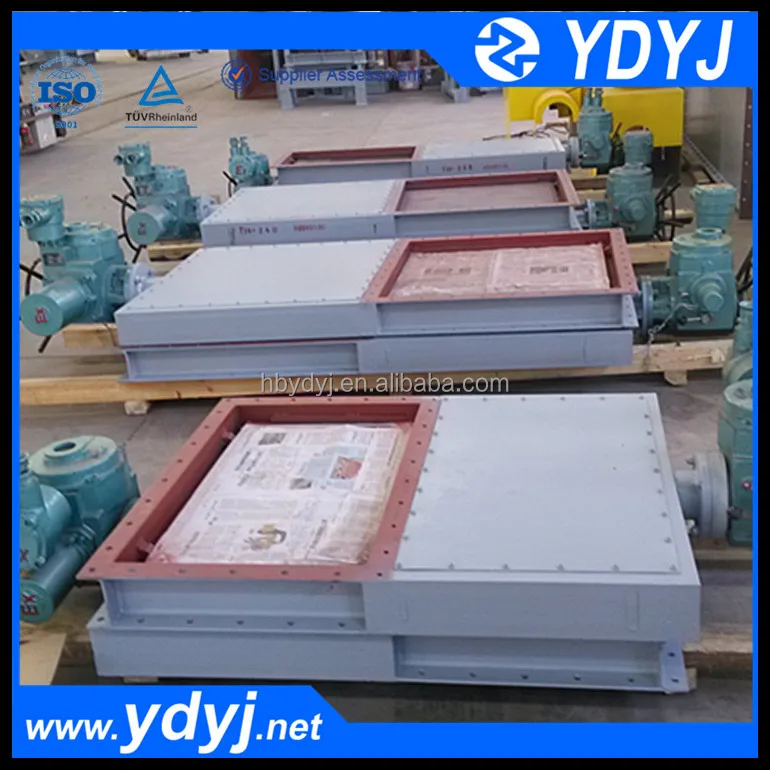

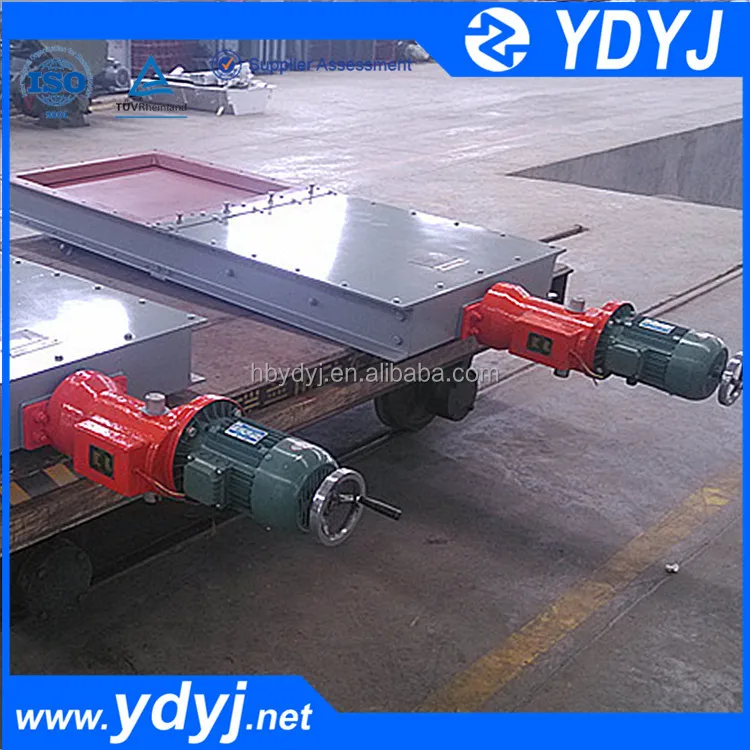

China good sealing motorized slide gate valve for sale

FOB Reference Price:Get Latest Price
$100.00 - $300.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
200~1000
Application:
General, Grain, grease, power plant, metallurgy, chemical etc.
Material:
stainless steel,carbon steel or customized
Temperature of Media:
High Temperature
Pressure:
customized
Power:
Manual
Media:
Bulk material
Port Size:
200~1000
Structure:
Regulating
Square gate:
200~1000mm
gate material:
316L, Q235-A, or customized
Transportation length:
customized
Inclination angle:
0~90 degree
Installation:
Both sides are flange connection.
paint color:
as customer requirement
gate category:
motorized slide gate valve
operation mode:
with motor
Product name:
motorized slide gate valve
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 7 days after payment
Product Description

Specifications

1. The Structure of motorized slide gate valve is simple,small volume.
2. Convenient install and repair.
3. It is operated by the motor.
4. ISO,TUV.

China good sealing motorized slide gate valve for sale


Introduction

Motorized slide gate valve is a valve which the gate plate is always in close contact with the valve seat, it's opening and closing parts is gate plate, the direction of gate plate motion is perpendicular to the direction of the fluid. Electric gate valve can be fully open and fully closed, can not be adjusted and the throttle.

Working principle

Open a mouth on the electric gate, the gate mouth can do off and consistent action with the lower connected mouth through the opening and closing of the gate. It adopts the design of full bore flow and is an ideal product for controlling bin and the pipeline system of the powder and granular material flow. It can be used to discharge dust for discharging or dust removal equipment. According to the different material and diameter of the discharge, it can be divided square and round series, and dozens of specifications are available for users to select, it is widely used practical unloading device with the use of more extensive.

Application

Motorized slide gate valve is the main control equipment, to control the flow of powder, crystal, particles and small pieces, or with the discharger supporting the use. It is widely used in metallurgy, mining, building materials, food.

Main Features

1.Motorized slide gate valve is usually used with unloading device or silo together, manual screw gate is flange connection, easy to install.
2.It has the advantages of simple and compact structure, reasonable design, reliable sealing, convenient and flexible operation, small volume, the resistance is small, easy installation and disassembly and other advantages.
3.It can be installed in horizontal or vertical direction, has the characteristics of preventing wear and automatic compensation function and long service life etc..
4.It should be checked regularly, add lubricating oil well maintenance during the normal course of operation.

Installation instructions

1.Motorized slide gate valve should be checked the gate cavity and the sealing surface before installation, not allow dirt or sand attachment;
2.The bolt joints, require even tighten;
3.Check the packing requirements of pressed parts, both to ensure the tightness of packing, but also to ensure the gate open and flexible;
4. Before installing, the gate must be check the model, connection size and attention to media flow, ensure consistency with the requirements of the valve;
5. Before installing the gate, the gate driver must reserve the necessary space;
6. The wiring drive circuit diagram shall be carried out;
7. Screw gate must be regularly maintained, are not free to collision and extrusion, so as not to affect the sealing.

Certifications
Detailed Images

Machine Parts

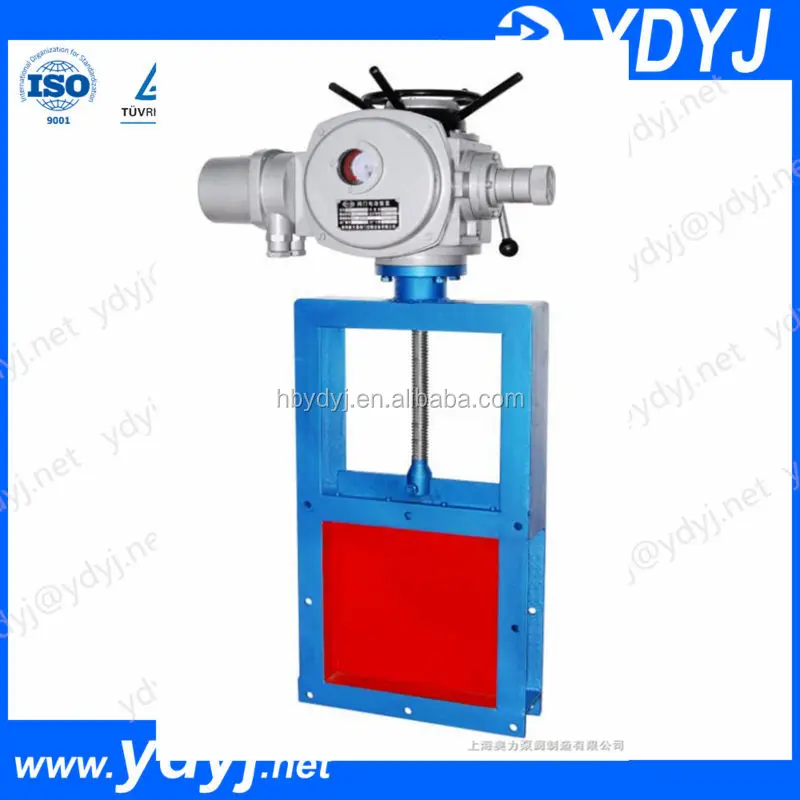

Name: Gate plate

Brand: YIJI

Original: China

The gate plate is used to control the size of the opening. Gate plate material is customized, carbon steel or stainless steel 304 and so on. It is connected to the hand wheel through a wire rod.

Main Features

Name: Control Flow

Brand: YIJI
Original: China
Motorized slide gate valve is the main control equipment by the size of opening, to control the flow of powder, crystal, particles and small pieces, or with the discharger supporting the use.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600 (L) * 300 (W) * 270 (D)
Weight
10 T

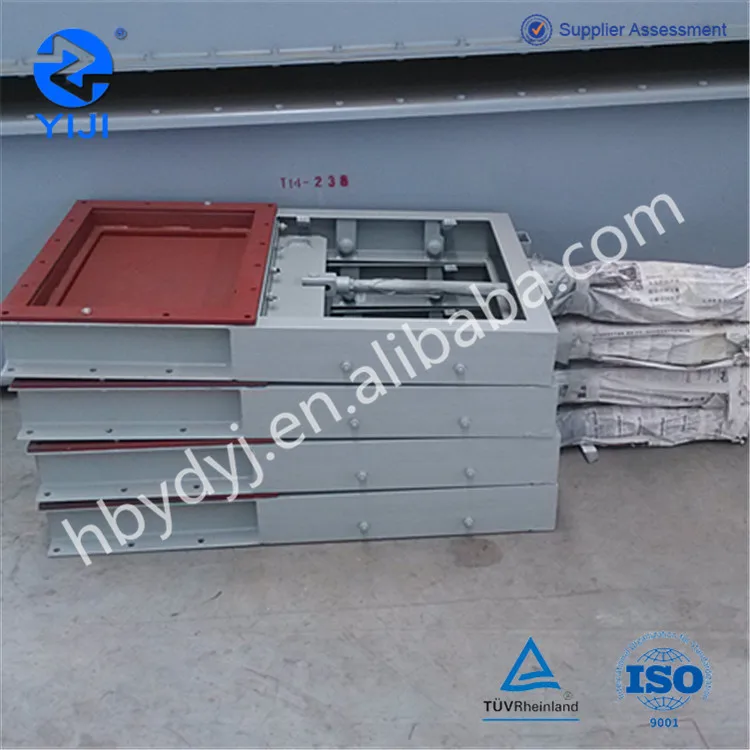

Packaging Details
The closed package is iron box(Size: L*W*H).
Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.
Packaging
Size
600 (L) *300 (W) *270 (D)
Weight
10 T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
