China supplier Professional Shaftless screw blade for industrial use

FOB Reference Price:Get Latest Price
$20.00 - $200.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
200~560
Blade outer diameter:
200~560mm
Blade inner diameter:
80~270mm
Screw pitch:
200~560mm
Blade height:
60~145mm
Blade thickness:
16~30mm
Weight per meter:
18~82kg
Color:
Customized
Usage:
Shaftless screw conveyor
Product name:
shaftless screw balde
Application:
Industrial use
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing(Wooden case, carbon case or pallet).
Port
Shanghai,Tianjin,Qingdao
Lead Time :
Shipped in 5 days after payment
Product Description

Description

1.Simple structure,large capacity
2.Low noise, strong adaptability and easy operation
3. Easy for maintenance and long service life
4.ISO,TUV,SEW,FLENDER

China supplier professional Shaftless screw blade for industrial use


Introduction

Shaftless screw blade is heavier gauge helicoid balde that is produced to outside diameter and pitch specifications with an open center. This product works well when moving sticky products and large sized lumps. The shaftless blade often lies inside of a trough and is driven from one end by a flange or stub shaft. The other end may be open or attached to a stub shaft or mounting flange. The advantages include no intermediate bearings, no center pipe, lower maintenance costs, longer life, and increased screw capacity.
Applications
It is suitable for the transportation for all kinds of powdery, granular, lumplish and other mixed materials.
Shaftless Screw conveyor are widely used in such as building material, metallurgy, chemical, electrical, coal and electricity power etc.
Fields which transports coal powder, carbon, alkali, reborn gel and powder, zinc oxide, calcium carbonate and small mass coal.
It is high temperature material transport equipment with advance structure and good currency.

Technical parameters of Shaftless screw blade

Item

Outer diameter(mm)
Inner diameter(mm)
Height of blade(mm)
Screw pitch(mm)
Blade thickness(mm)
Weight per meter(kg)

1

200

80

60

200

16

18.48

2

220

80

70

220

20

26.46

3

220

100

60

220

16

18.99

4

220

100

60

220

18

21.37

5

220

100

60

220

20

23.74

6

260

100

80

260

20

30.56

7

260

120

70

260

16

22.24

8

260

120

70

260

18

25.02

9

260

120

70

260

20

27.8

10

280

120

80

280

20

31.24

11

280

140

70

280

18

25.52

12

300

140

80

300

18

28.67

13

300

140

80

300

20

31.85

14

320

160

80

300

22

43.22

15

320

160

80

300

25

37.64

16

380

220

80

380

20

42.88

17

380

120

130

380

25/20

54.14

18

460

300

80

460

25

43.78

19

460

180

140

460

20/25

60.13

20

560

400

80

560

30

57.82

21

560

270

145

560

30/25

82.28

Certifications

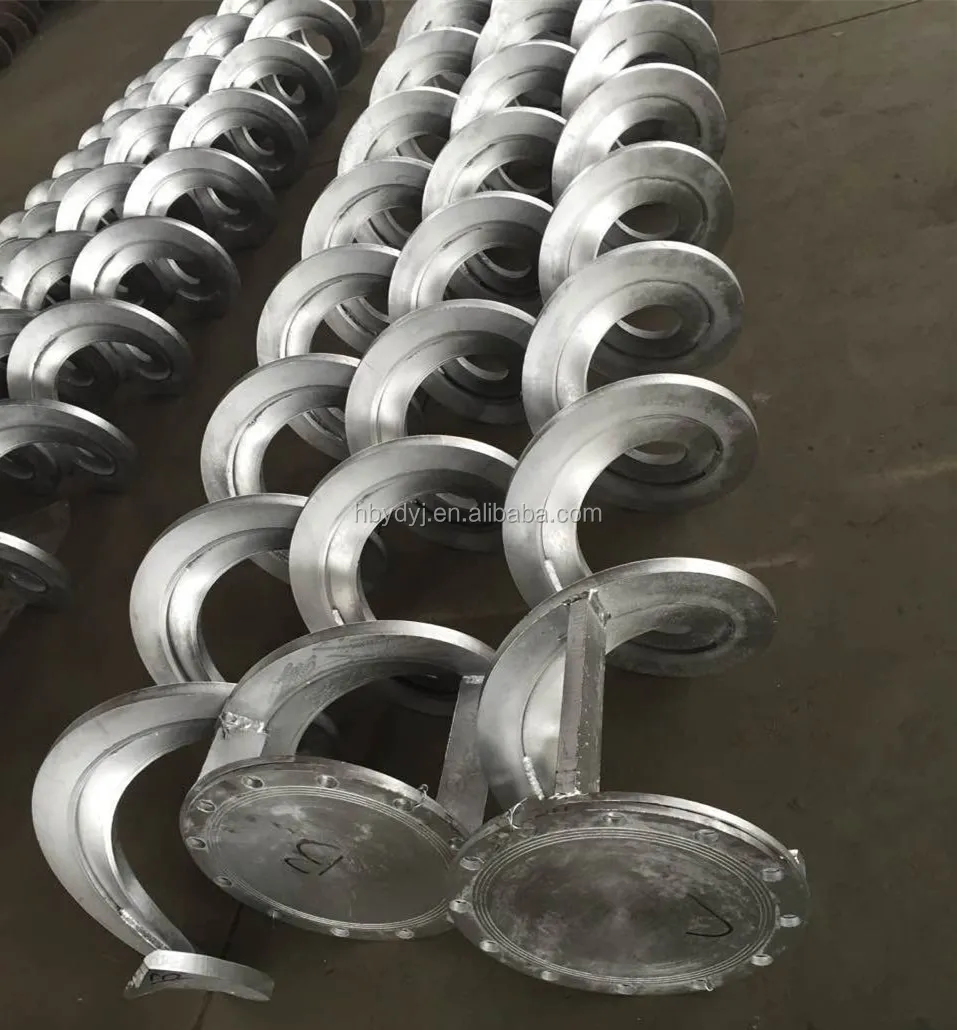

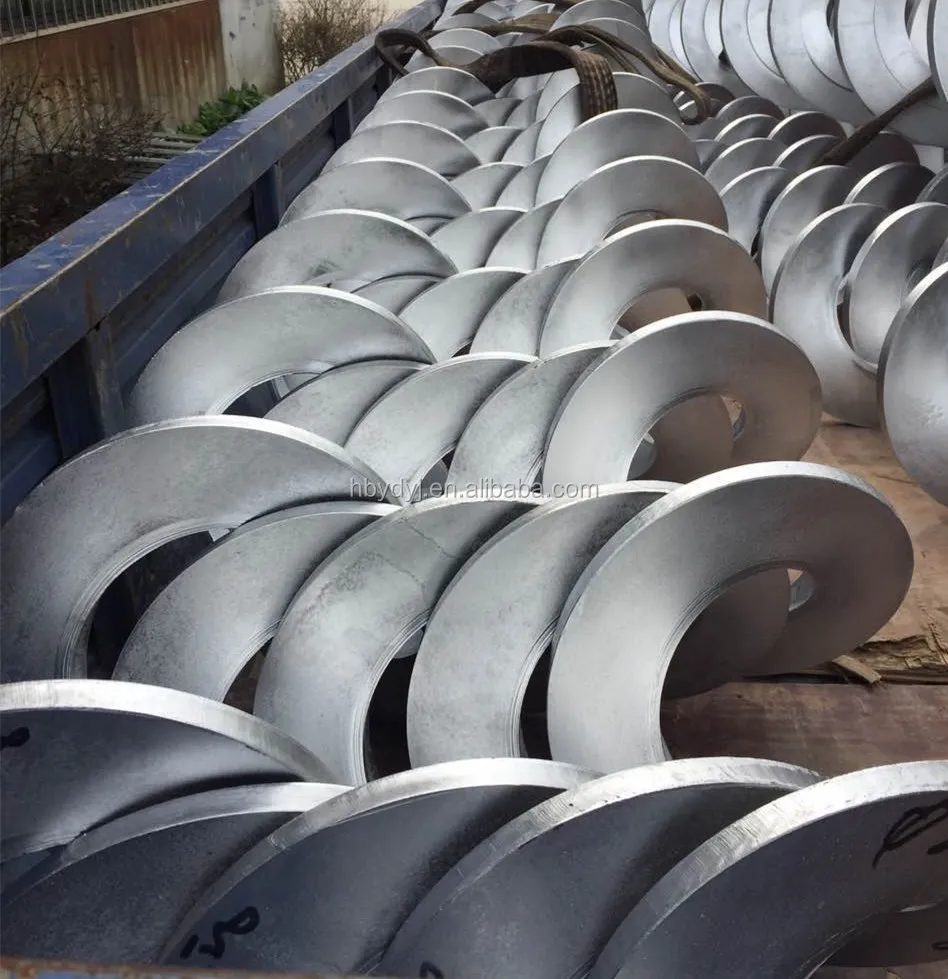

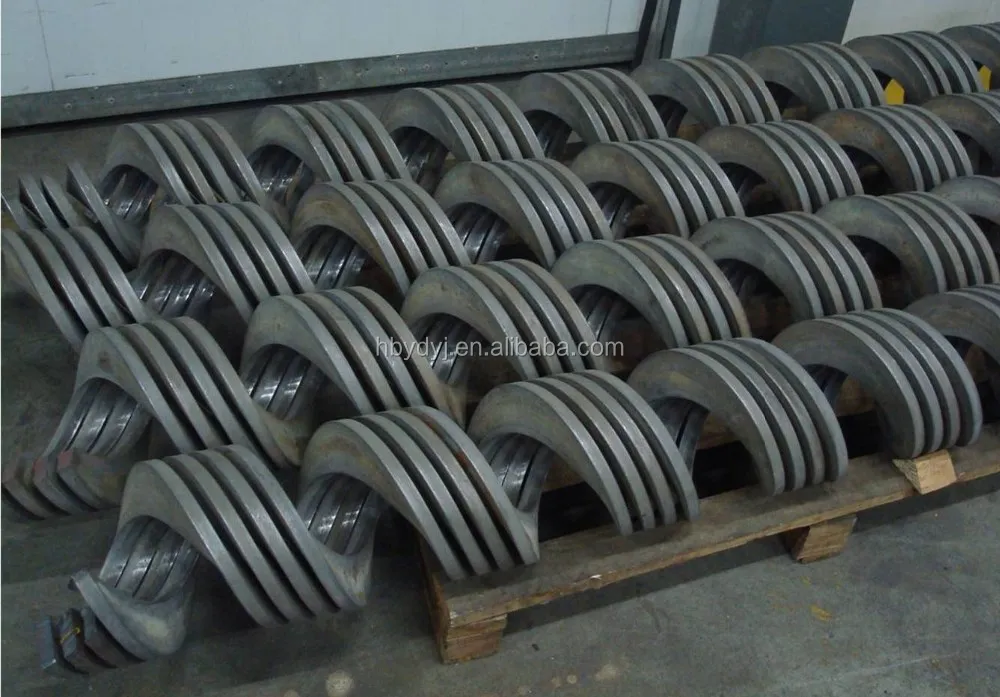

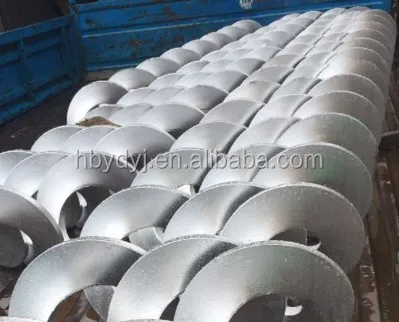

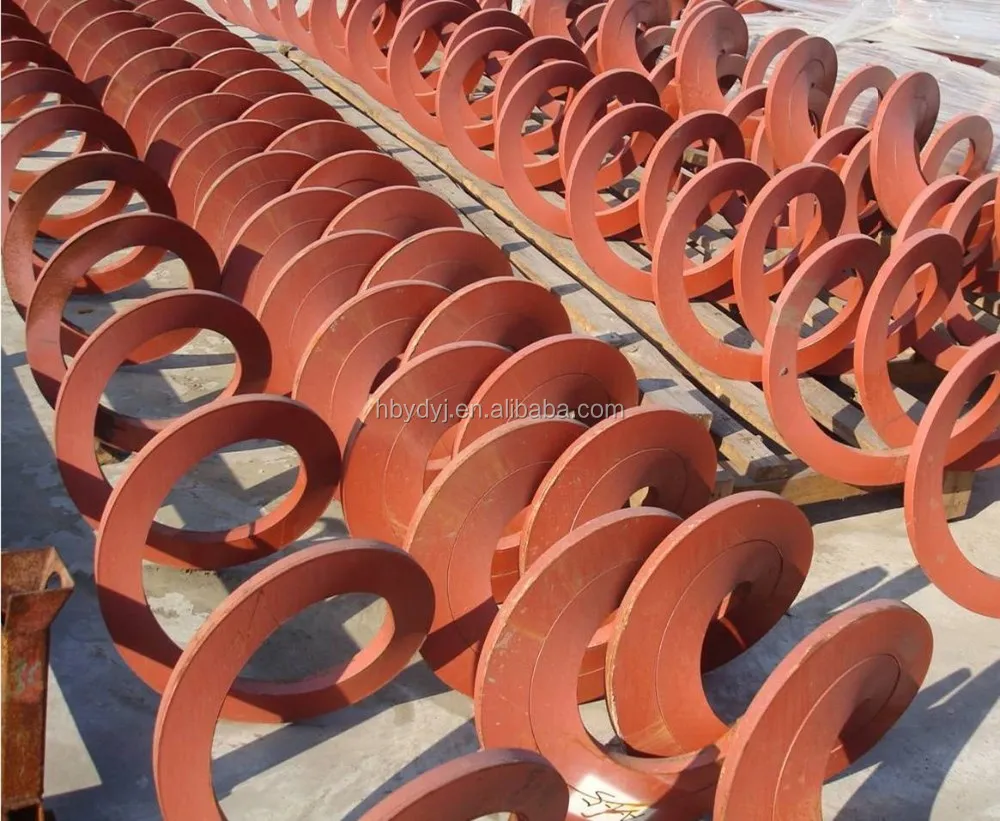

Detailed Images

Machine Parts

Name: Shaftless screw blade

Brand: YIJI

Original: China

It consists of ordinary carbon steel, alloy steel, manganese steel, stainless steel and other materials. Can be used for the transmission of slag, mud, sand and water separation, press to strengthen the four series, such as the more than 1 thousand specifications of the non axis spiral

Main Features

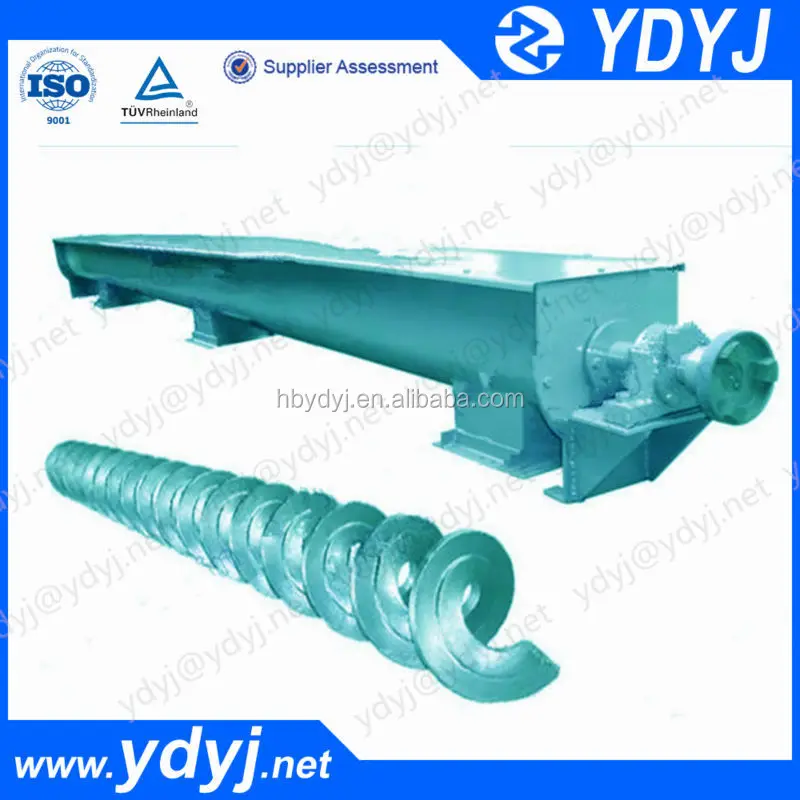

Name: Shaftless screw conveyor
Brand: YIJI
Original: China
1, good environmental protection performance.2, large conveying capacity, throughput is the same diameter shaft screw conveyor 1.5 times. 3.turn from, low energy consumption, low discharge opening is not blocked. 4, Large convey distance, a single conveyor length up to 60~70m. 5, compact structure, space saving, beautiful in appearance, convenient in operation, economic durable.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details
The closed package is iron box(Size: L*W*H).
Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.
Packaging
Size
600 (L) * 300 (W) * 270(D)
Weight
10 T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).

We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
