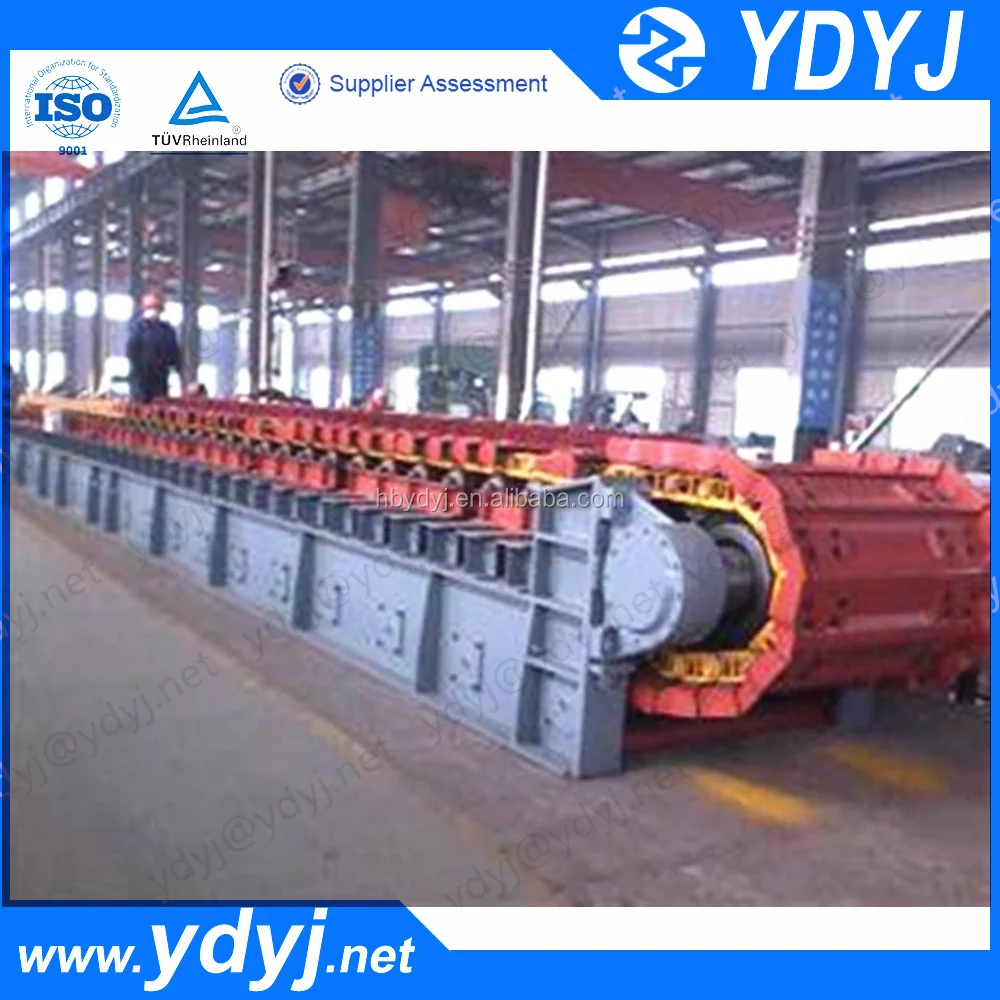

China professional chain apron conveyor for granular material

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
chain apron conveyor
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
100~800/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
BLT650~1600
Voltage:
380v or customized
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001:2008
Trough width:
650/800/1000/1250/1600
Chain speed:
0.16~0.50m/s
Max conveying length:
60~100 m
Chute width:
650~1600mm
Max capacity:
100~800 m3/h
Motor voltage:
customized
Application:
granular material
paint color:
as customer request
Product name:
chain apron conveyor for granular material
conveyor name:
chain apron conveyor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 15 days after payment
Product Description

China professional Chain apron conveyor for granular material


Specification

1. We have rich experience of Chain apron conveyor .
2. WIth a large capacity to 10~800m3/h.
3. Open type structure.
4. Conveyor length up to 100 m.
5. ISO,TUV, SEW, FLENDER.

Product Application

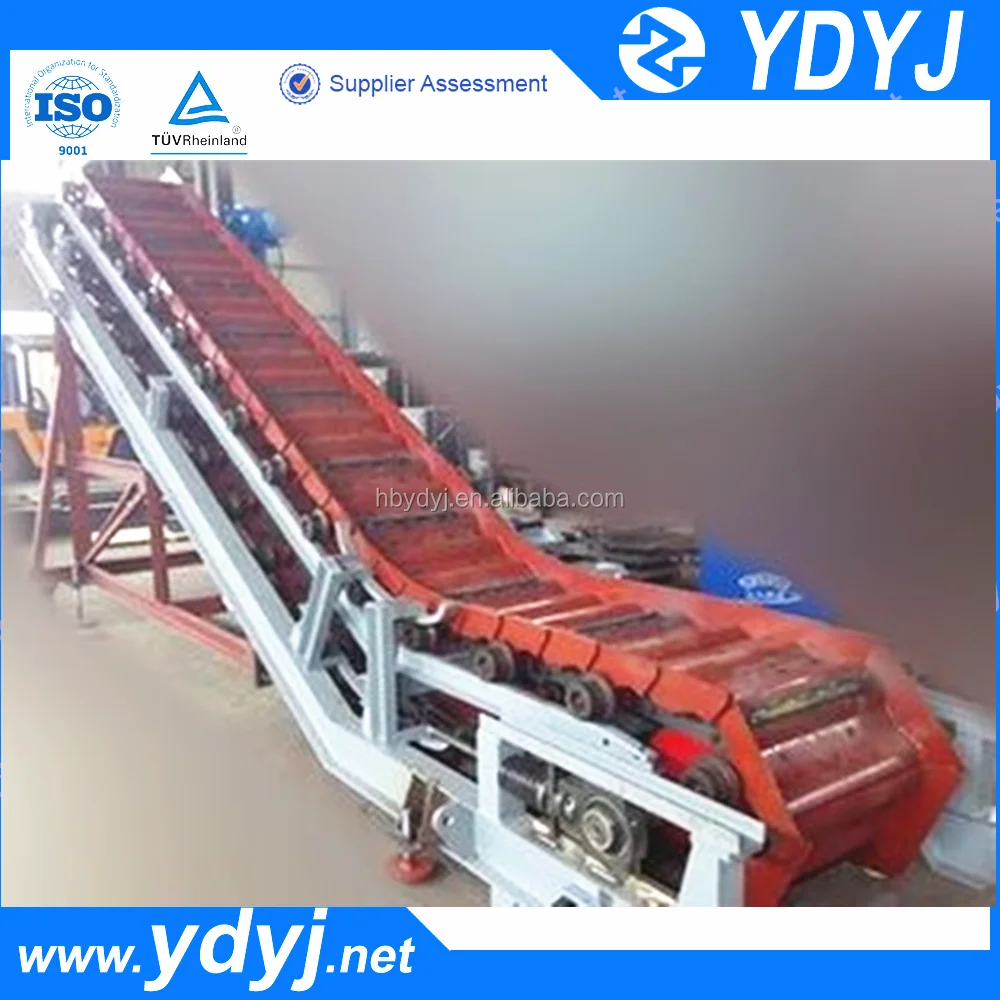

Chain apron conveyor is also called apron conveyor, it is generally composed of the following components: rack, drive device, tension device, conveying chain,and apron plate. Your  can choose any width and shape of the connecting plate, in order to meet the requirements of different transport products. This conveyor can be horizontal or inclined to transport materials, layout is very flexible. The longest length is up to 100 meters.

Application

Chain apron conveyor is a kind of universal fixed machinery of conveying equipment, plate do carrying tank, used to transport large bulk and single piece weight. Especially for large, heavy, hot and corrosion material, and in the process of conveying material and complete removal of riser, cooling, drying, heating, cleaning and classification process function, widely used in machinery, casting, metallurgy, chemical industry, building materials, power, mining and other industrial sector.

Main Features of Chain apron conveyor

1.Economic and practical, as well as high in performance--price ratio.
2.Modularized design and easy assembling.
3.Height of support leg is adjustable,with wide application.
4.Surfaces are treated by electrostatic spray.

Technical Parameter of Chain apron conveyor

Type
BLT650
BLT800
BLT1000
BLT1250
BLT1600
Apron plate width(mm)
650
800
1000
1250
1600
Max Capacity(m3/h)
100
200
350
500
800
Max conveying distance(m)
60
80
100
100
100
Speed(m/s)

0.16-0.5

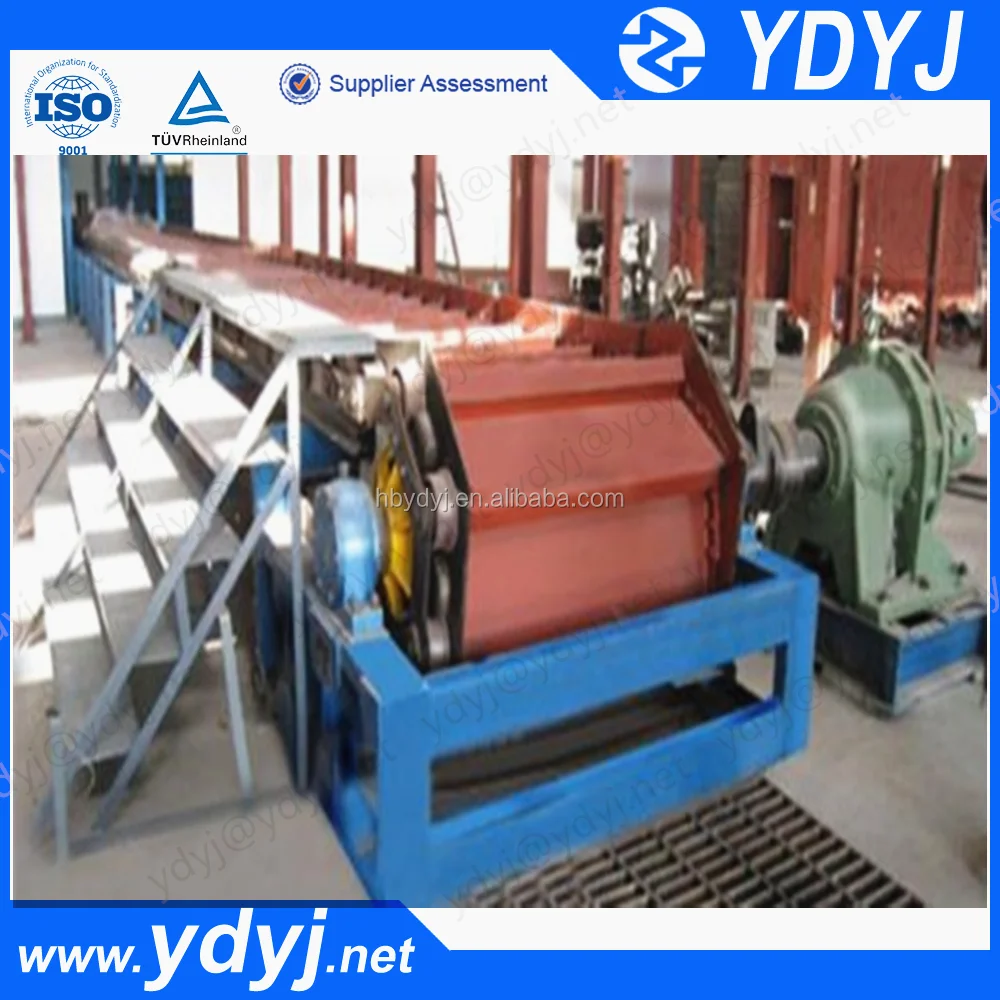

Detailed Images

Machine Parts

Name: Apron plate

Brand: YIJI

Original: China

Apron plate is used to carry the body material. Its specifications are based on the width of the scale plate conveyor to decide, it adopts wear-resistant material, flexible structure, easy to replace.

Main Features

Name: Chain Apron conveyor
Brand: YIJI
Original: China
The series of conveyor has a simple structure, reliable operation of using long service life, installation and easy maintenance. The material granularity, massive, working environment without special requirements .

Certifications
Protection device

Plugging alarm device

Device Type: A059

Switch Type: Limit switch

It is installed on the end cover plate of the head. When the material height exceeds the set value, the alarm signal is sent out to control the height of the material layer.(See red part in the picture.)

Speed Sensor

Device Type: A032
Switch Type: Proximity switch
 It is installed in the tail of the tail shaft and tail shaft to rotate together. When the speed exceeds the set range, it transmits a signal to the control system, so as to control the start and the stop of the motor to protect the equipment operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
