China professional LS series flexible twin screw conveyor for powder

FOB Reference Price:Get Latest Price
$2,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
twin screw conveyor
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
1.1~280 m3/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
LS100-1000
Voltage:
380v or customized
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001:2008
Screw diameter:
100~630mm
screw Pitch:
100~580mm
Rotational speed:
16~140 rpm
conveyor Capacity:
5 ~170m3/h
screw conveyor shape:
tubular shape
conveyor name:
twin screw conveyor for powder
conveying material:
powder
screw blade material:
wear resisitance steel or customized
Color:
as customer request
Product name:
twin screw conveyor
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing(Wooden case, carbon case or pallet).
Port
Shanghai,guagnzhou, yichang
Lead Time :
Shipped in 20 days after payment
Product Description

China professional LS series flexible Twin screw conveyor for powder


Twin Screw conveyor is a kind of continuous conveying equipments with spiral blade rotation to push the material forward, suitable for conveying Cereals, flour, cement, chemical fertilizer, slag, sand, stone, coal, small coal and other materials.The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have a good seal.

Application

1. Twin Screw conveyor is a continuous conveying equipment and widely used in metallurgy, building materials, chemical engineering department, food processing and machinery etc..

2. When the inclination angle less than 20 degrees,it is suitable to convey low viscosity, non perishable, non caking, granular and powdered, pieces of material.

CHARACTERISTICS AND TYPES

1.Compact structure, small cross section, light weight
2.Good seal performance, high transportation efficiency3.Flexible technical arrangement, easy to be installed

and maintained, safe operation

4. Totally enclosed design for dust-proof and vapor-tight requirements of flexible screw conveyor
5. Designs available for high temperature material
6. Ideal for abrasive, corrosive or other materials

Technical Parameter of Twin Screw conveyor

Type

LS100
LS160
LS200
LS250
LS315
LS400
LS500
LS630
LS800

Screw diameter(mm)

100

160

200

250

315

400

500

630

800

Pitch (mm)

100

160

200

250

315

355

400

450

500

Rotational speed (rpm)

71-140

56-112

50-100

45-90

40-80

36-71

32-63

25-50

20-40

Capacity (t/h)

1.1-2.2

3.1-7

6.31-3

11-22

16-34

31-62

50-98

77-140

126-200

Certifications

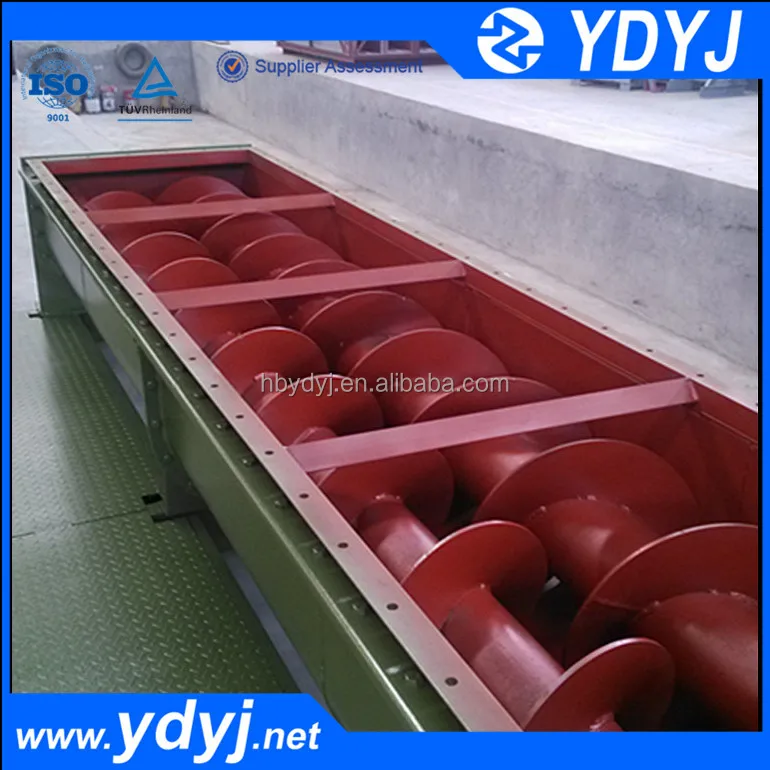

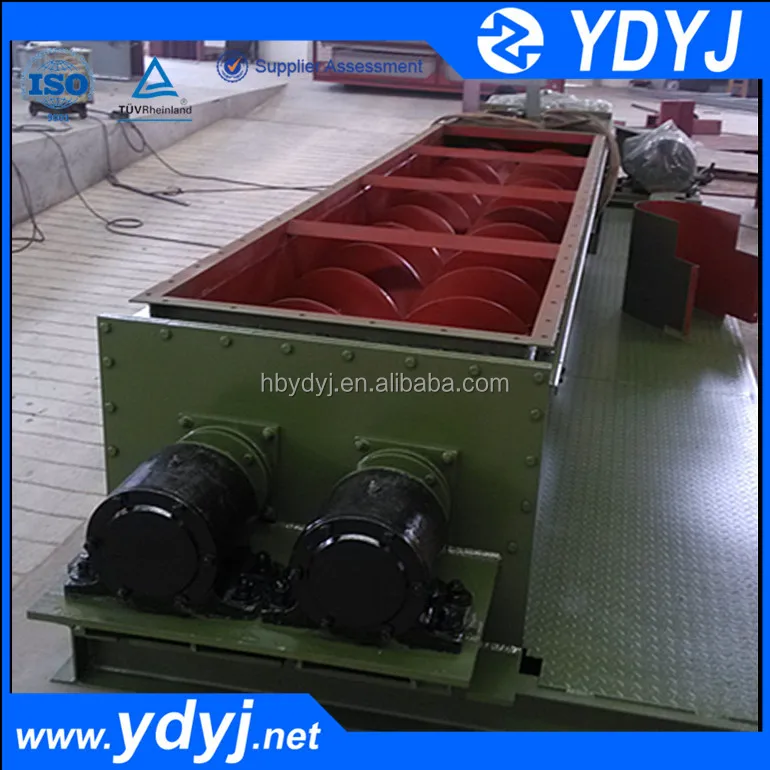

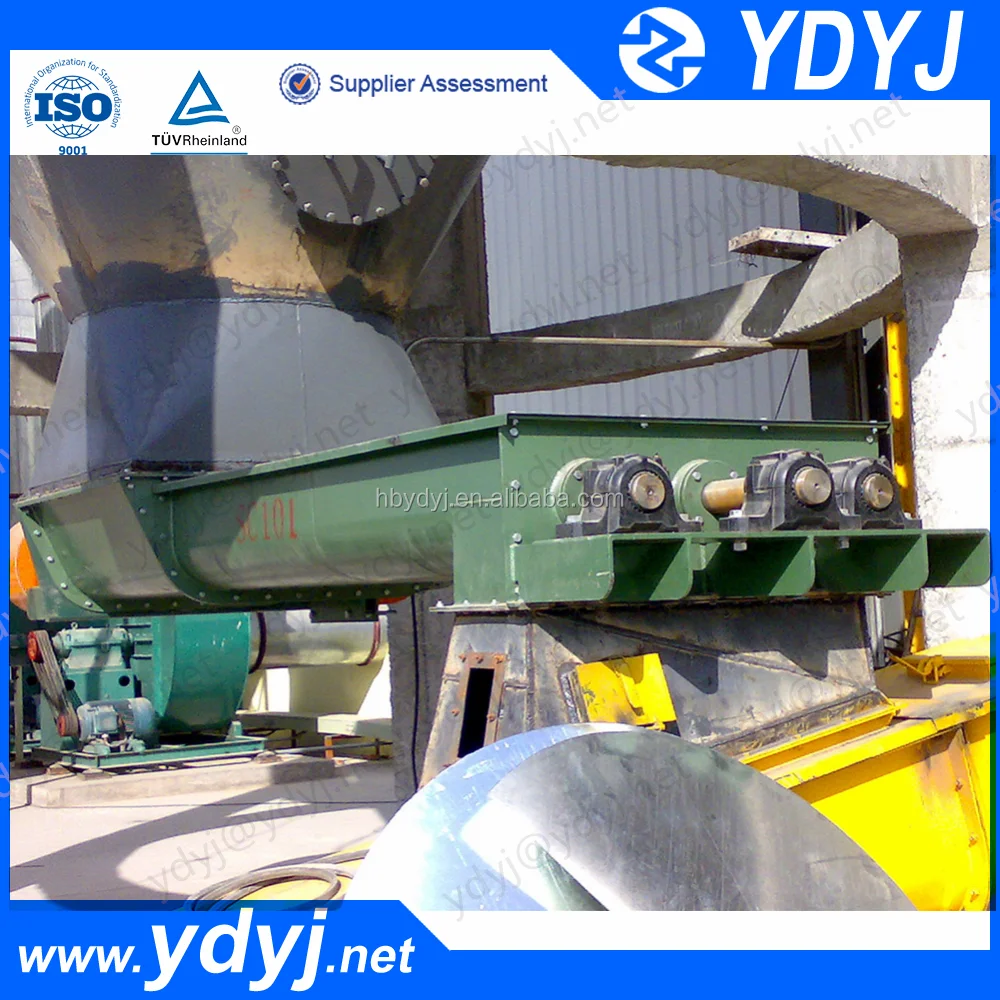

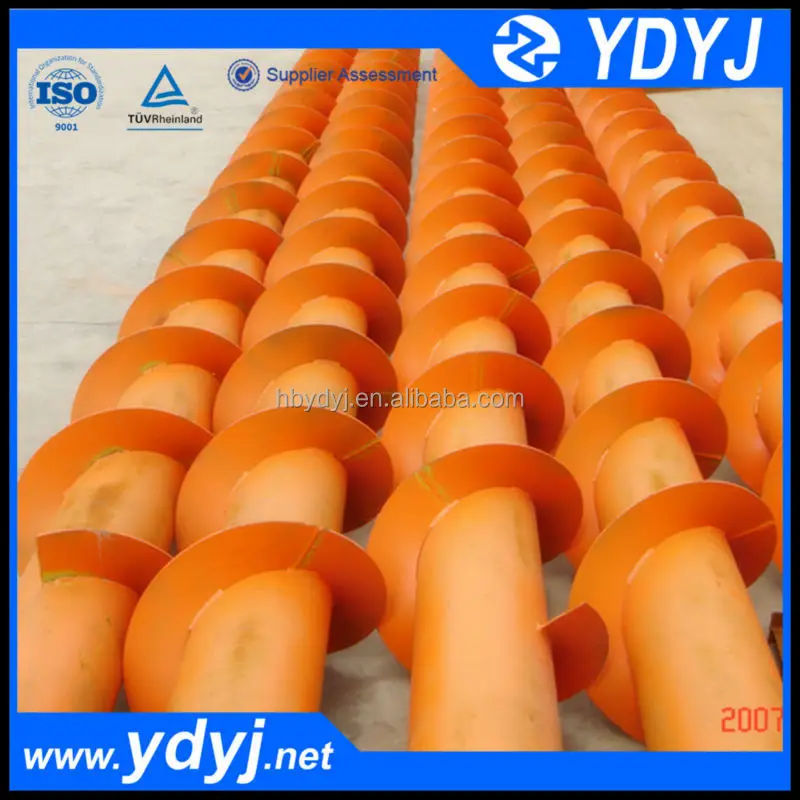

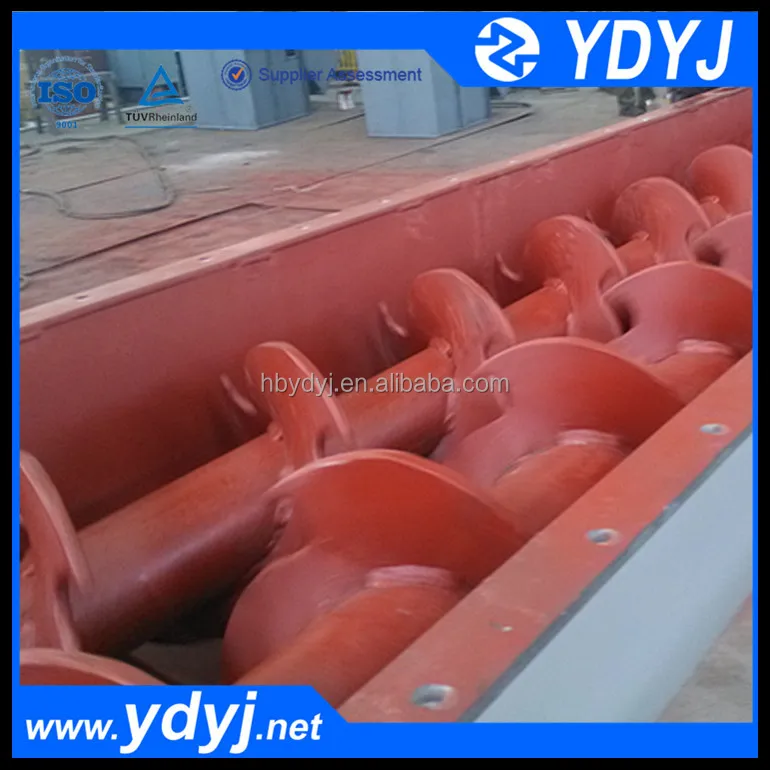

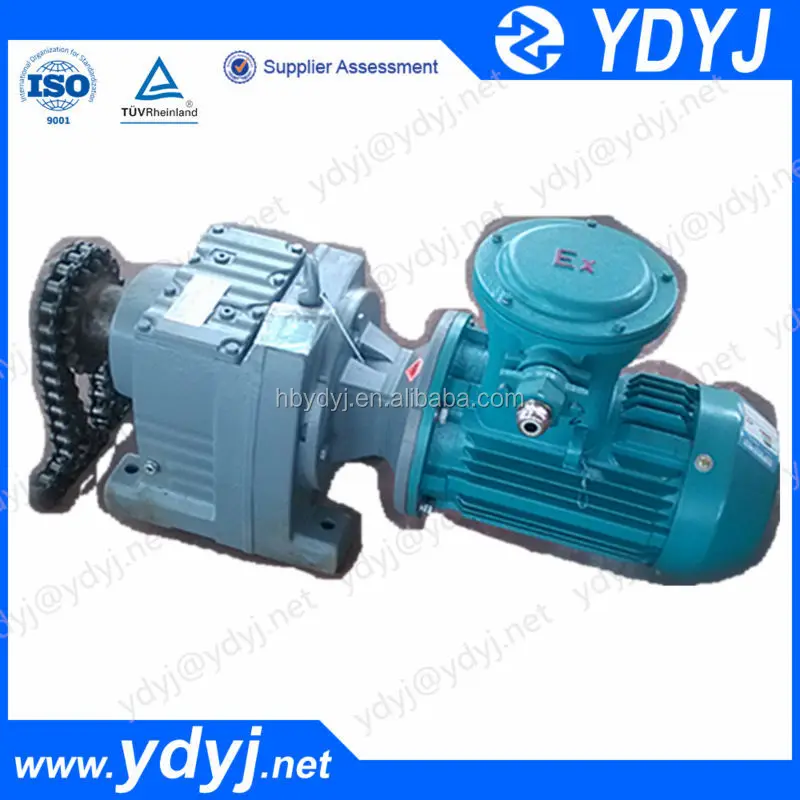

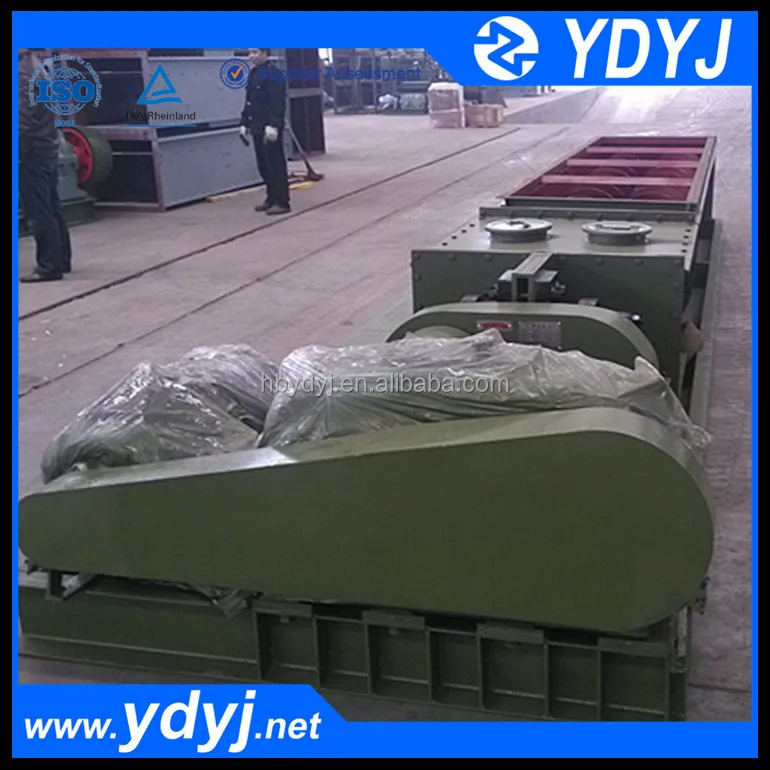

Detailed Images

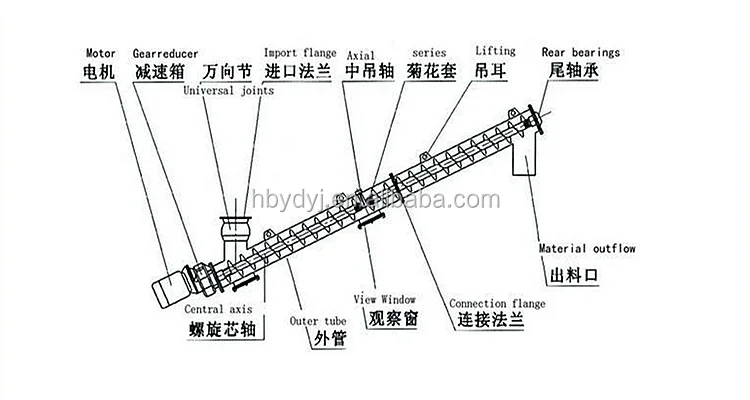

Working principle

When the drive device starts, the helical blade in the case push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.

Performance and features

1. Simple structure, good sealing, good quality ,large capacity, easy operation and low power invest cost.
2. Working temperature is -20~50°C, with material temperature below 200°C.
3. Axle head and conveying spiral adopt spline connection, with features of convenient mounting & diassembling, large load capacity and stability.
4. All sections of screw conveyor are connected with flange. Screw blades are integral connection.
5. Inlet and outlet chutes have many kinds of connections, such as flange, sack, universal joint, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details

The Non standard package is iron frame(Size: L*W*H).

We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.

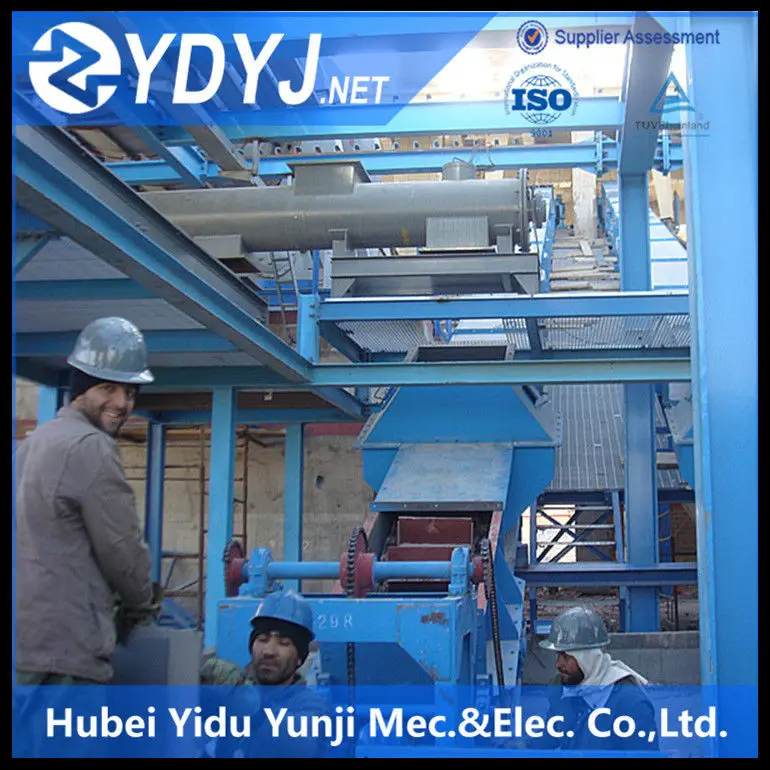

Our Company
