Bulk material Vertical Bucket Elevator / bucket elevator for sale

FOB Reference Price:Get Latest Price
$1,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
bucket elevator for sale
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
15~480t/m3
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
TZD200~1000
Voltage:
220V/380V
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO,TUV
Conveying capacity:
10~800t/h
Bucket width:
250~1000mm
Bucket volume:
1.21~20L
Bucket distance:
105~300mm
Chain type:
Vertical Bucket Elevator
Bucket speed:
1.76~3.94 m/s
Application:
bulk material
Connection:
Flanged structure, bolt connection.
Color:
Customers' Requirement
Product name:
bucket elevator for sale
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing (Wooden cas ,carbon case or pallet).It is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 10 days after payment
Product Description

Bulk material Vertical Bucket Elevator / bucket elevator for sale


Specifications

1.Vertical Bucket Elevator with Rectangular SINGLE CHANNEL closed case.
2. Flanged structure and bolt connection.
3. Large lifting capacity.
4. ISO,TUV, SEW,FLENDER.

Operating principle

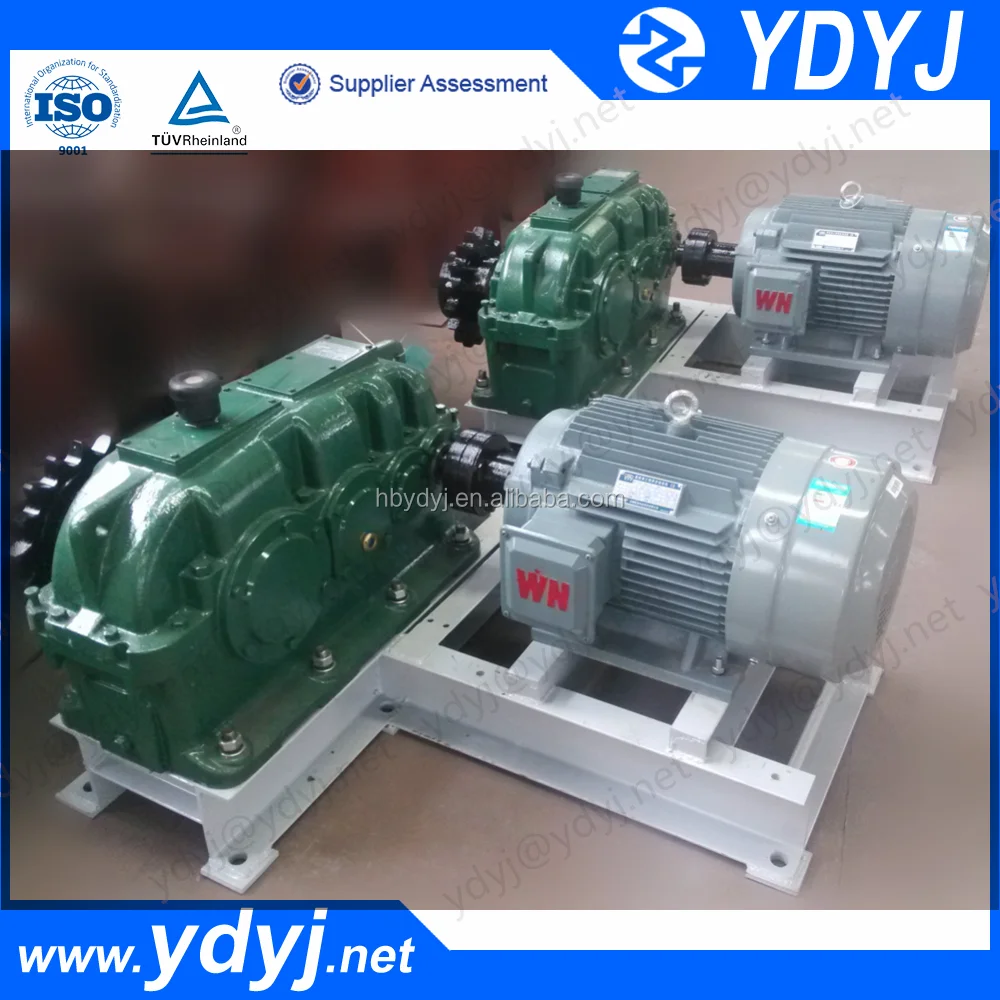

When the driving device of Vertical Bucket Elevator start working , it drives the puley to make the chain with steel buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The Vertical Bucket Elevator is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.

Application scope

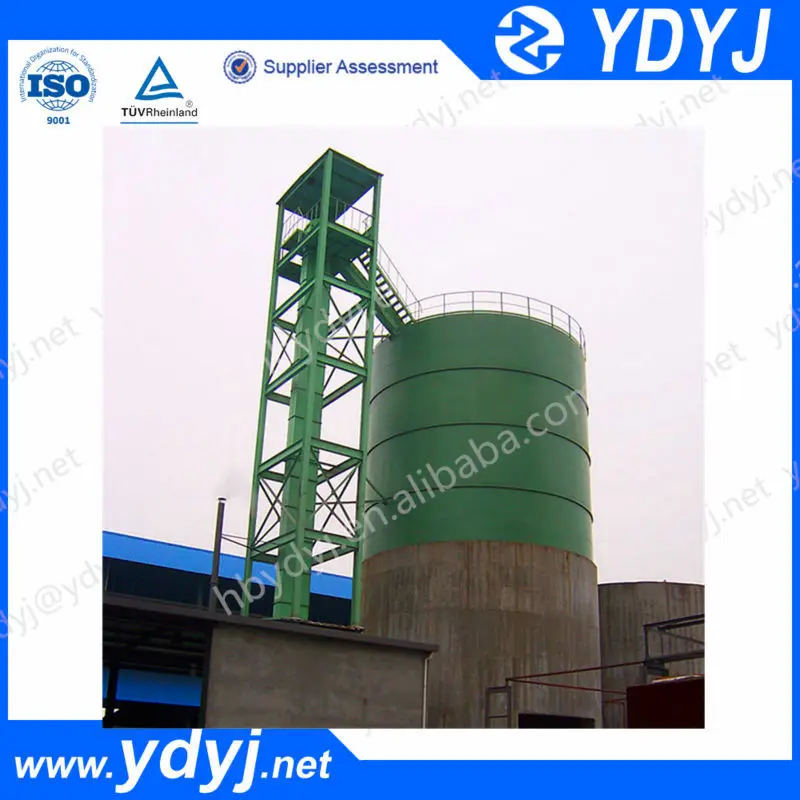

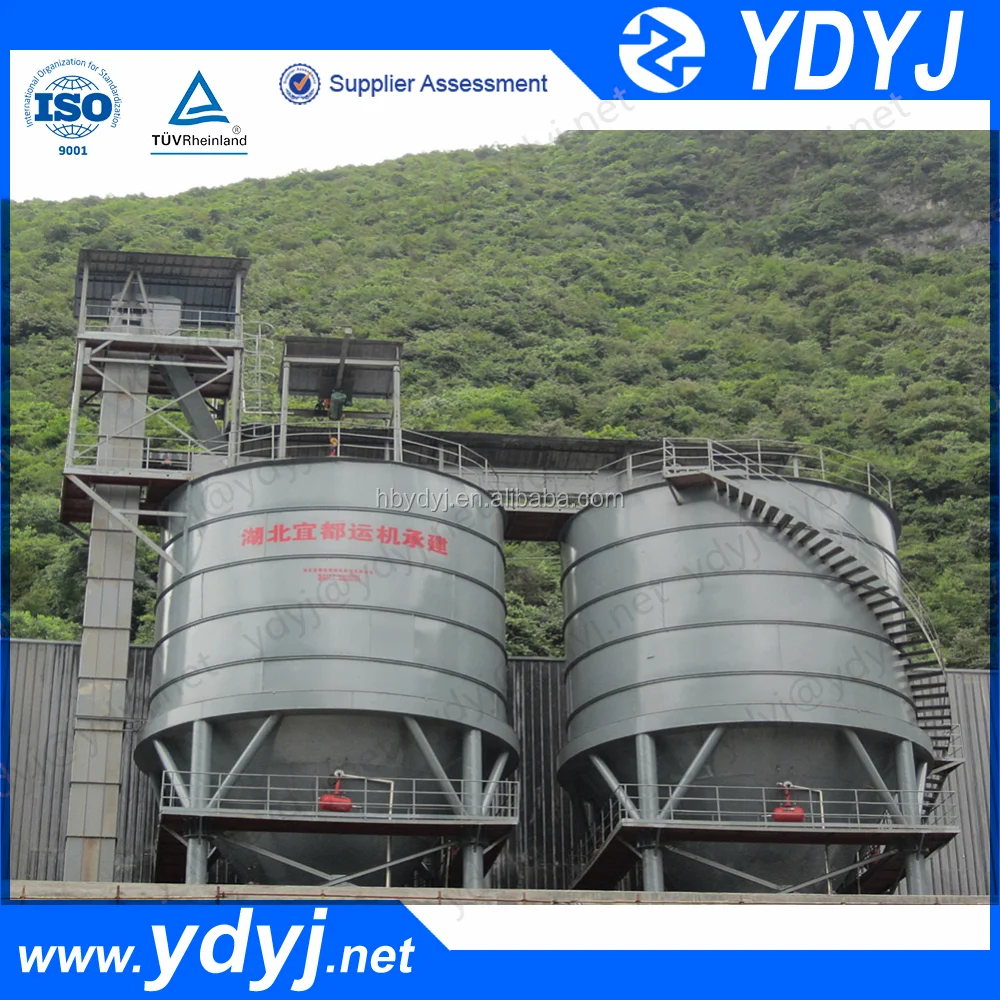

Vertical Bucket Elevator is widely used in grain and oil, metallurgy, cement, chemical, light industry and so on. It is used for lifting grain ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.

Technical Parameters of Vertical Bucket Elevator

Equipment Type
TB250
TB315
TB400
TB500
TB630
TB800
TB1000
Capacity(m3/h)

15-25

32-46

50-75

84-120

35-190

216-310

340-480

Bucket Width(mm)

252

315

400

500

630

800

1000

Bucket Capacity (L)

3

6

12

25

50

100

200

Bucket distance(mm)

200

200

250

320

400

500

630

Chain Pitch (mm)

100

100

125

160

200

250

315

Number

1

2

2

2

2

2

2

Broken load of chain(KN)

112/160

112/160

160/224

224/315

315/450

450/630

630/900

Diameter of sprocket(mm)

386.37

482.96

618.19

772.74

965.92

1217.06

1217.06

Bucket speed (m/s)

0.5

0.5

0.5

0.5

0.5

0.5

0.5

driving shaft speed (rpm)

24.71

24.71

19.78

15.45

13.26

9.89

7.85

Main Features

1.Vertical Bucket Elevator need small installation space and can lift more materials. it can convey the grain, for example wheat, soybean , corn etc.
2.The transmission capacity is large, it is up to 800 t/h.
3.The belt with the plastic buckets .
4.Long use life.
Certifications
Detailed Images

Machine Parts

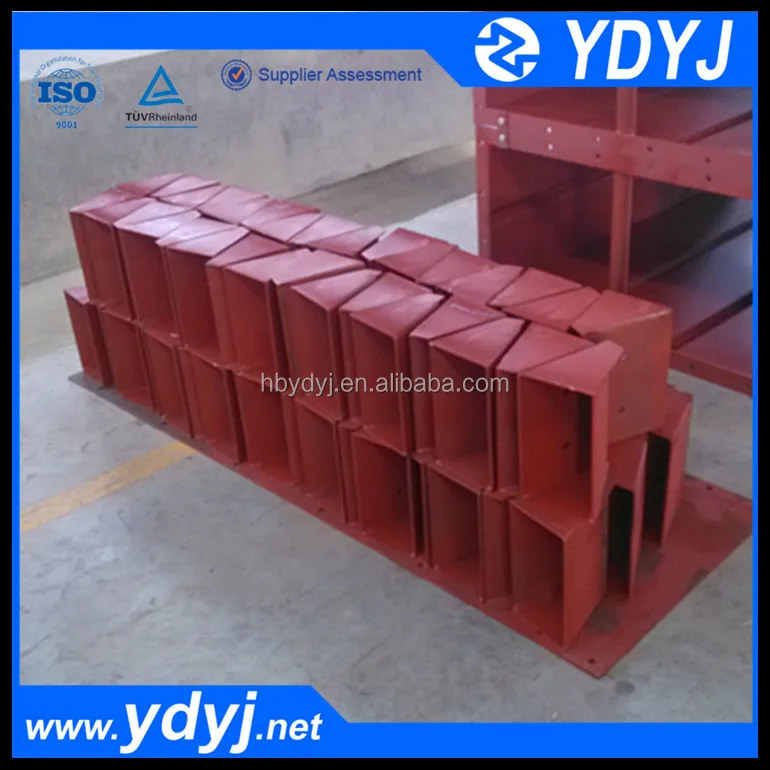

Name:  Steel bucket

Brand: YIJI

Original: China

 Bucket is made of wear resistant steel and welded with steel plate or stamping forming, Welded or stamping in the bucket is with a thickness of 2 to 6 mm steel plate made. In order to reduce the bucket lip wear, often in the hopper edge outer lip welding a additional sidecar.

Main Features

Name: Bush Roller chain
Brand: YIJI
Original: China
Roller chain is made of alloy steel, and have high wear resistance.The chain must be with heat treatment, to improve its hardness. Chain is the most critical drive part of the bucket elevator.

Machine Parts

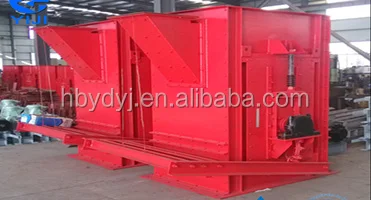

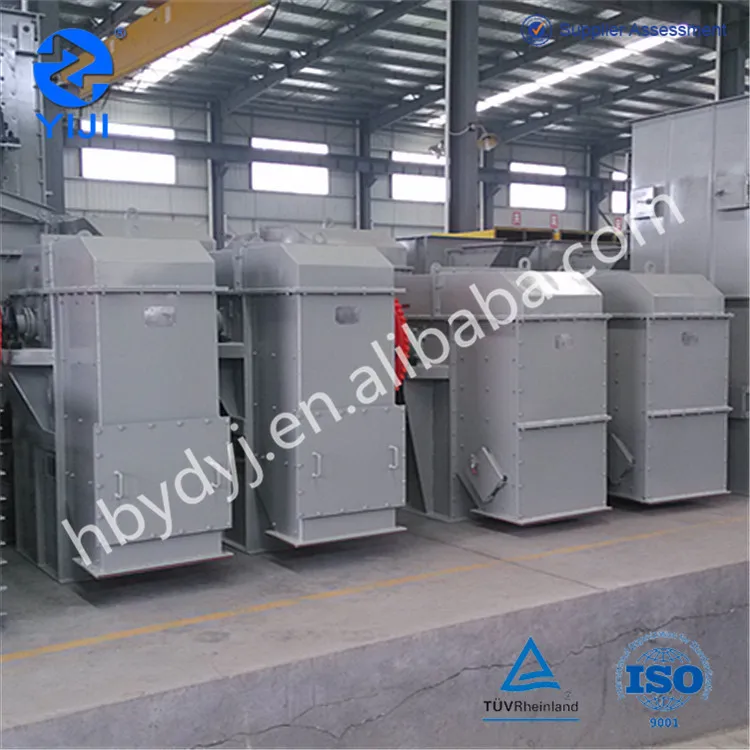

Name: Head section
Brand: YIJI

Original: China

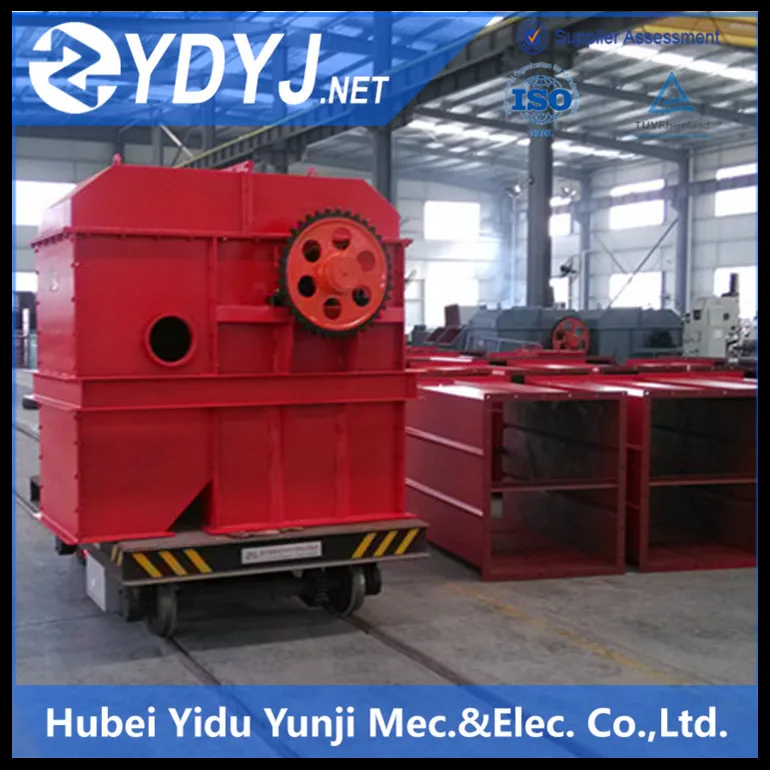

The head section comprises head wheel, bearing assembly, discharge port, observation door, blocking alarm and so on.

After the material is raised, discharge at the discharge port at the head.

Main Features

Name: Middle section
Brand: YIJI

Original: China
The middle casing is finished by the plasma cutting machine, shape rules, high precision. Bucket elevator has a good sealing performance with the rectangular closed casing, no leakage in the conveying process.The segments are connected by bolts, using the sealing gasket and sealant to seal.

Name: Tail section
Brand: YIJI
Original: China

The tail section comprises tail wheel, bearing assembly, inlet port, observation door, speed sensor and so on.
The material is added at the tail inlet,then to be promoted.
Speed sensor is installed on the shaft of tail and used to detect the speed of equipment whether it is normal, and convey the signal  to the electronic control system.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The closed package is iron box(Size: L*W*H).
Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
