China ISO steel specialized tubular screw conveyor for bulk material

FOB Reference Price:Get Latest Price
$2,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw Conveyor
Material:
Steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
1.1~280 m3/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
GX150~600
Voltage:
380v or customized
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001:2008
Screw diameter:
150~600mm
screw Pitch:
150~600mm
Rotational speed:
16~140 rpm
conveyor Capacity:
5 ~170m3/h
screw conveyor shape:
tubular shape
conveyor name:
tubular screw conveyor for bulk material
conveying material:
bulk material
screw blade material:
wear resisitance steel or customized
Color:
as customer request
Product name:
tubular screw conveyor
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing(Wooden case, carbon case or pallet).
Port
Shanghai,guagnzhou, yichang
Lead Time :
Shipped in 20 days after payment
Product Description

China ISO steel specialized tubular screw conveyor for bulk material


Tubular screw conveyor is a kind of continuous transmission equipment which without immunity traction components, it uses rotation screw to convey material. The screw conveyor is of simple structure, low marking cost, strong sealing, safe ,convenient operation and other advantages, It allows multiple inlets and outlets. It is widely used in various industrial department(such as building materials, chemicals, electric power, metallurgy, coal, mine, food and other industries)to convey powder, granular and lump material, such as, coal, ash, slag, cement, food, etc. The temperature of material is less than 200°C. Tubular screw conveyor is not suitable for transporting those material which is perishable, with big viscous and easy caking. In the concrete mixing plant screw conveyor's effect reflected to the fullest. Our company can design and manufacture special models based on your needs.

CHARACTERISTICS AND TYPES

1.Compact structure, small cross section, light weight
2.Good seal performance, high transportation efficiency3.Flexible technical arrangement, easy to be installed

and maintained, safe operation

4. Totally enclosed design for dust-proof and vapor-tight requirements
5. Designs available for high temperature material
6. Ideal for abrasive, corrosive or other materials

Technical Parameter of Tubular screw conveyor

Type

GX150

GX200

GX250

GX300

GX400

GX500

GX600

Screw diameter(mm)

150

200

250

300

400

500

600

Pitch (mm)

120

160

200

240

320

400

480

Rotational speed (rpm)

31-129

31-114

31-102

31-88

31-88

31-75

31-59

Capacity (t/h)

1.3-55

3.1-11

6-20

10-30

25-71

49-118

85-162

Allowable speed ratio

0.013

0.03

0.06

0.1

0.25

0.48

0.85

Allowable contilever load(kg)

210

370

580

800

1500

2400

3500

Certifications

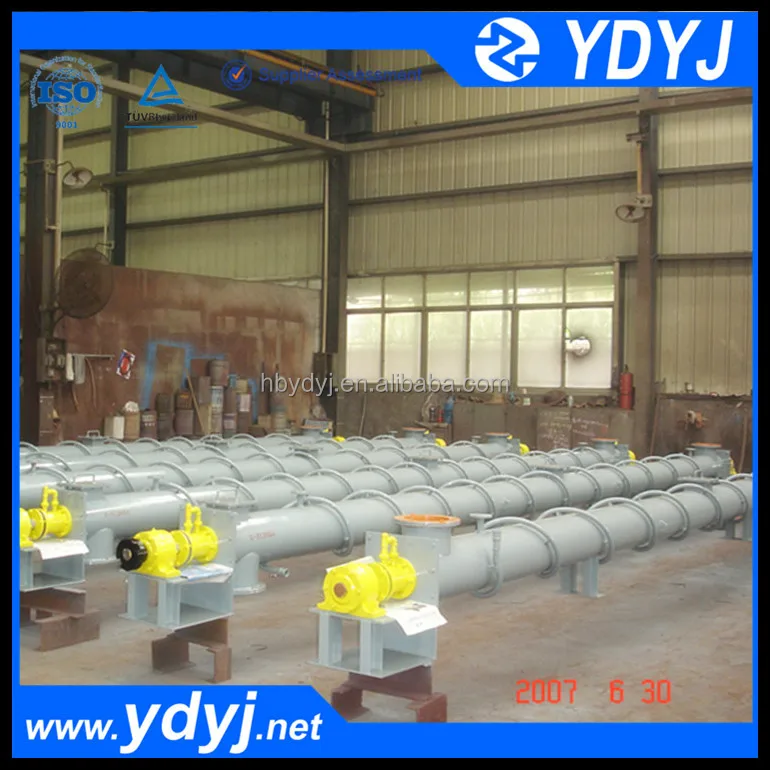

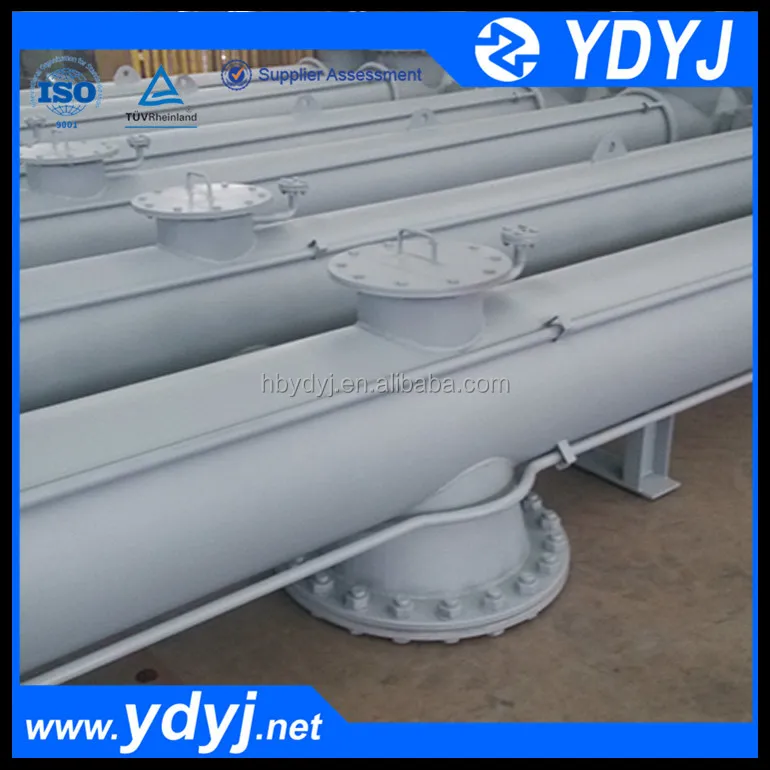

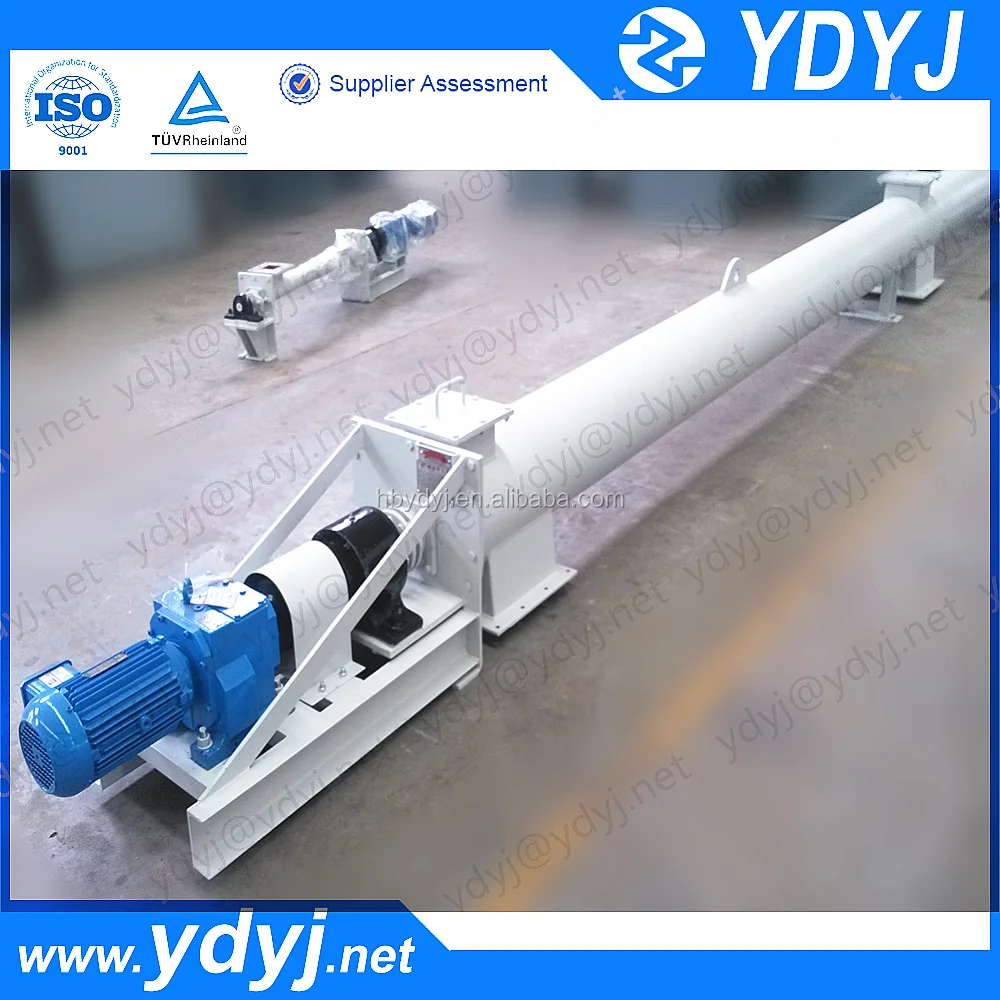

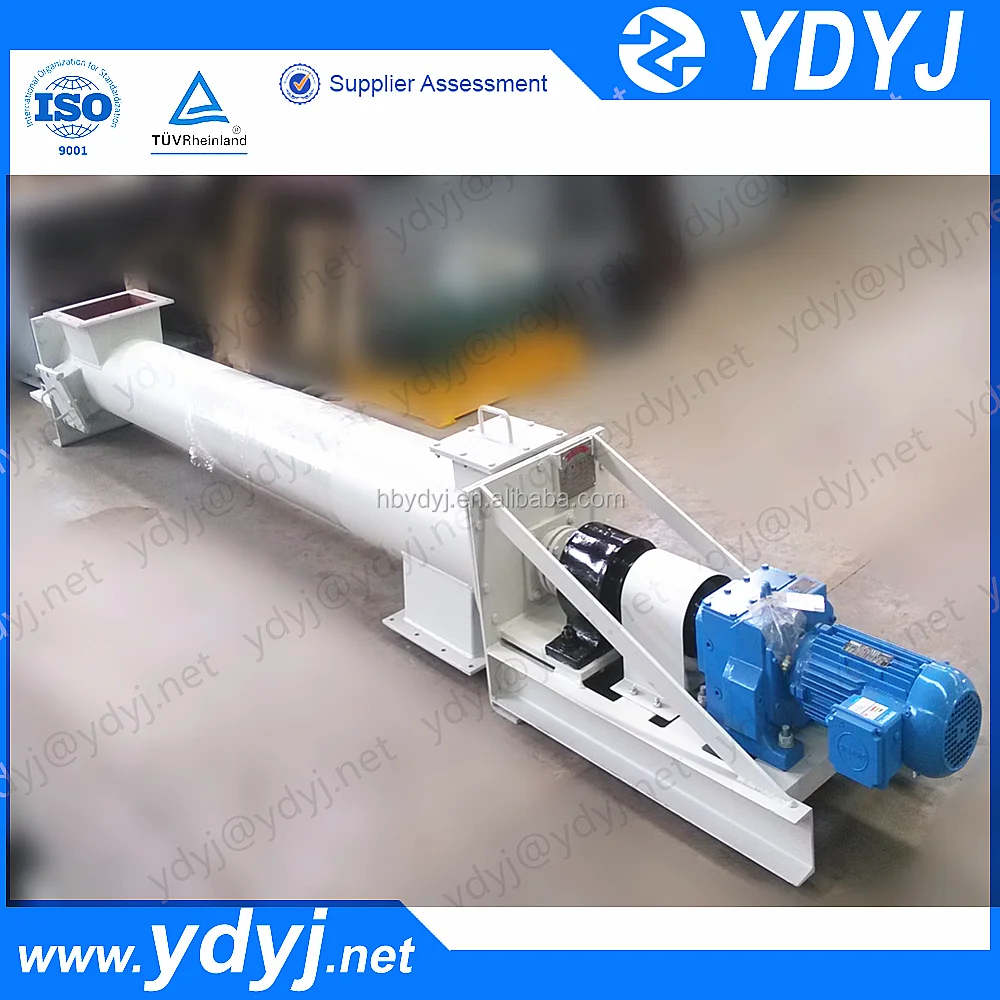

Detailed Images

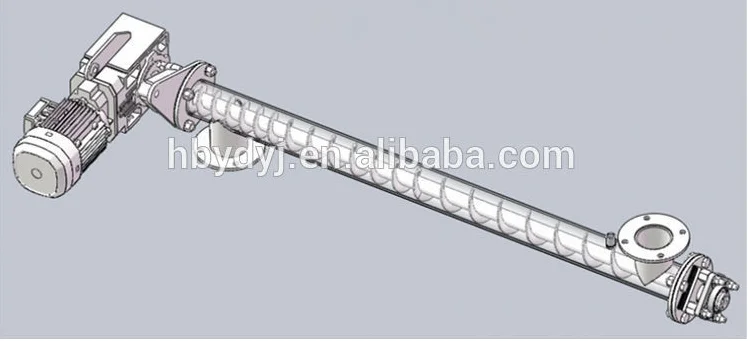

Working principle

When the drive device of tubular screw conveyor starts, the helical blade in the case push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.

Performance and features of tubular screw conveyor

1. Simple structure, good sealing, good quality ,large capacity, easy operation and low power invest cost.
2. Working temperature is -20~50°C, with material temperature below 200°C.

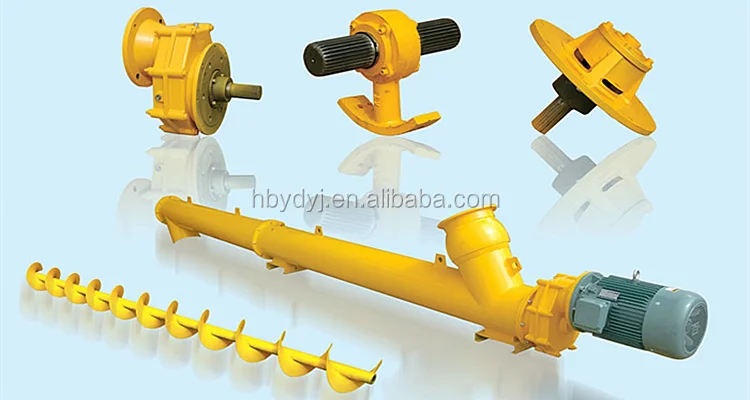

3. Axle head and conveying spiral adopt spline connection, with features of convenient mounting & diassembling, large load capacity and stability.
4. All sections of screw conveyor are connected with flange. Screw blades are integral connection.
5. Inlet and outlet chutes have many kinds of connections, such as flange, sack, universal joint, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details

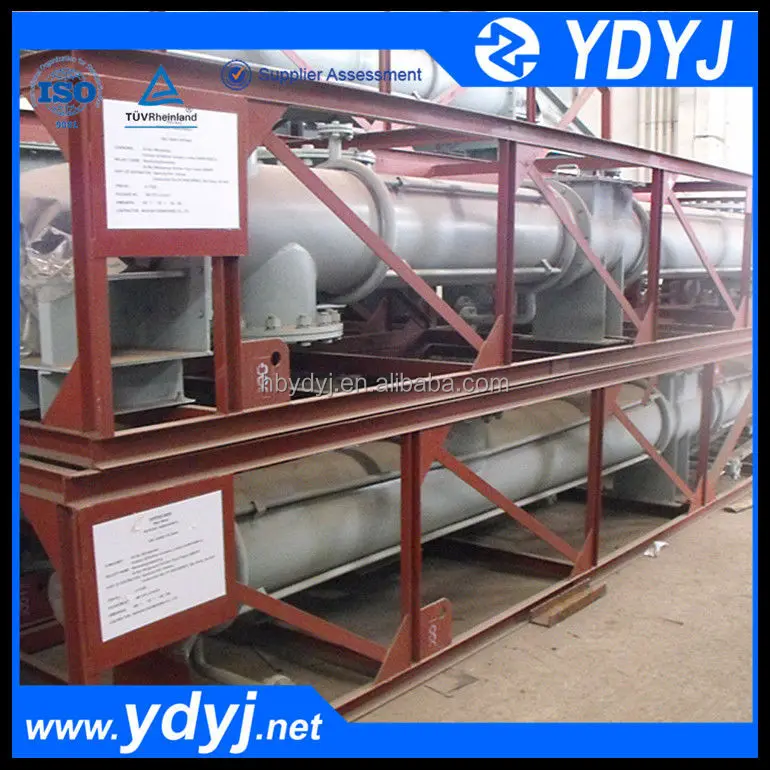

The Non standard package is iron frame(Size: L*W*H).

We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
