China professional En-Masse inclined scraper chain conveyor for bulk material

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
inclined scraper chain conveyor
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Inclining Conveyor
Load Capacity:
25~240t/h
Place of Origin:
Hubei, China (Mainland)
Brand Name:
YIJI
Model Number:
MC12~MC32
Voltage:
220V/380V
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001
Trough width:
250/320/400/500/630/800
Chain speed:
0.2~0.32m/s
Transportation length:
0~80 m
Chute width:
250~800mm
Scraper chain type:
S30-DT,Z30-DT
Product name:
scraper chain conveyor
Application:
All bulk material
paint color:
as customer request
Structure design:
flange structure and bolt connection
Conveyor category:
inclined scraper chain conveyor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 15 days after payment
Product Description

China professional En-Masse inclined scraper chain conveyor for bulk material


Specification

1. The Nation Standard maker of inclined scraper chain conveyor.
2. WIth a large capacity.
3. Full-closed structure.
4. Conveyor length up to 80 m.
5. ISO,TUV, SEW, FLENDER.

Operating Principle

When inclined scraper chain conveyor is conveying materials, the pressure which comes from the chains in conveying direction of materials and the weight function of materials themselves cause the internal friction.This friction assures the stable condition between material layers, and it can overcome the external frictional which caused by moving materials in the trough,then make the materials to form a continuous whole flow to be transported.

Product Application

Inclined scraper chain conveyor has become a widely used equipment for bulk material transportation, it is widely used in metallurgy, building materials, electric power, chemical, cement, coal, port, wharf, mine, oil, food, feed and other industries.

Main Features

1. Inclined scraper chain conveyor with Simple structure ,easy in installation and maintation.
2.The heat resistant steel as the main parts make it handle high temperature big bulk density materials.
3. Running in a high automatization.
4. Inclined scraper chain conveyor Can be loaded and unloaded on multiple points.

Technical Parameters of Inclined chain scraper conveyor

Type
MC12
MC16
MC20
MC25
MC32
Chute width(mm)
120
160
200
250
320
Chute height(mm)
100
120
130
160
200
Capacity(m3/h)
42531
42696
15-30
23-46
46-74
Max conveying distance(m)
30
30
30
30
30
ChainType
DV1
DV1
DV1
DV1/S30-DV1
S30-DV1
Chain Allowable load(kn)
15
17
26
35/40.1
40.1
Chain Weight(kg/m)
7.27
10.7
11.4
17.2/20.43
20.43
Chain Speed(m/s)
0.16-0.32
0.16-0.32
0.16-0.32
0.16-0.32
0.2-0.4
Detailed Images

Machine Parts

Name: Scraper chain

Brand: YIJI

Original: China

1. Chain link has a variety of pitch, fully meet the delivery of bulk materialss.
2. Take tempering, carburizing and other heat treatment, improve wear resistance.
3. High quality alloy steel material.(40Cr,20CrMnTi)
4. With high temperature resistance and high tensile strength.

Main Features

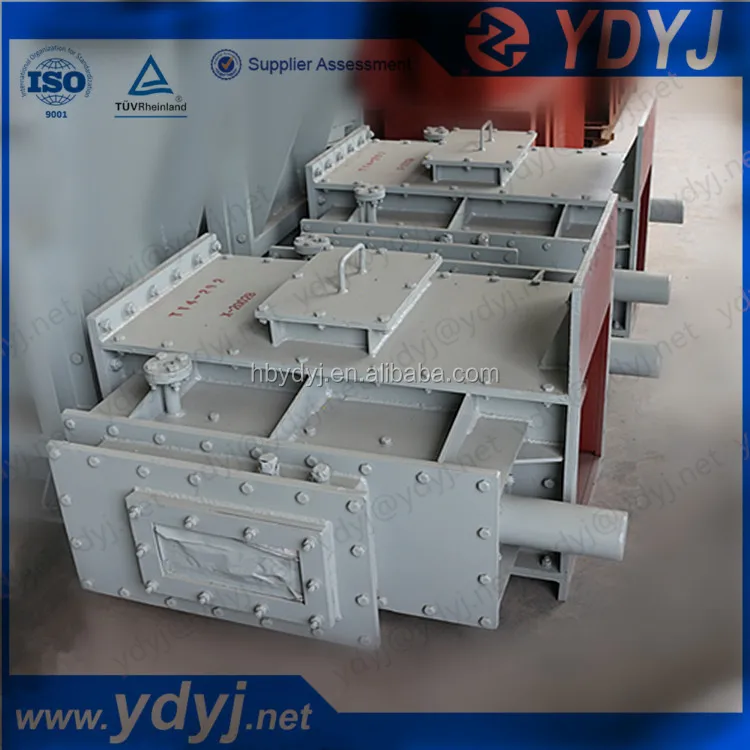

Name: Closed structure
Brand: YIJI
Original: China
Inclined scraper chain conveyor has a good sealing performance with the rectangular closed casing, no leakage in the conveying process.The segments are connected by bolts, using the sealing gasket and sealant to seal.

Machine Parts

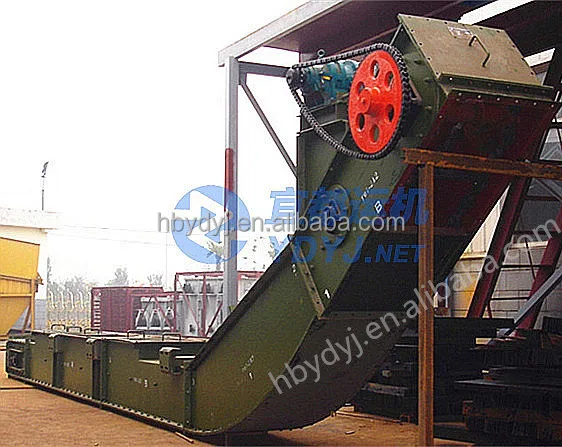

Name: Head part
Brand: YIJI
Original: China
It includes wheel, shaft, bearing, bearing seat and so on. The wheel is composed of a wheel hub and a toothed plate, and the toothed plate can be replaced by a bolt, so that the maintenance is convenient.

Main Features

Name: Tail part
Brand: YIJI
Original: China
It includes wheel, shaft, bearing, bearing seat and so on, It has a crew thread tension and can adjust the length of scraper chains.The tail shaft is provided with a speed sensor, the sensor will obtain the speed signal to the control system, to achieve the function of security protection.

Certifications
Protection device

Plugging alarm device

Device Type: A059

Switch Type: Limit switch

It is installed on the end cover plate of the head. When the material height exceeds the set value, the alarm signal is sent out to control the height of the material layer.(See red part in the picture.)

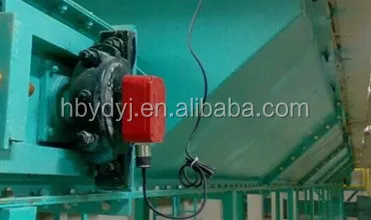

Speed Sensor

Device Type: A032
Switch Type: Proximity switch
 It is installed in the tail of the tail shaft and tail shaft to rotate together. When the speed exceeds the set range, it transmits a signal to the control system, so as to control the start and the stop of the motor to protect the equipment operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
