Carbon steel, stainless steel or as customer requirements
Place of Origin:
380v or Customized
DV1 or S30
En Masse Conveyor for Conveying Bulk Materials
Flanged structure, bolt connection
Conveying Bulk Materials
Redler En Masse Conveyor
After-sales Service Provided:
Engineers available to service machinery overseas
130 Set/Sets per Month
Packaging & Delivery
Export packing( Carbon case, wooden case,pallet or as customer requirements
Shipped in 20 days after payment

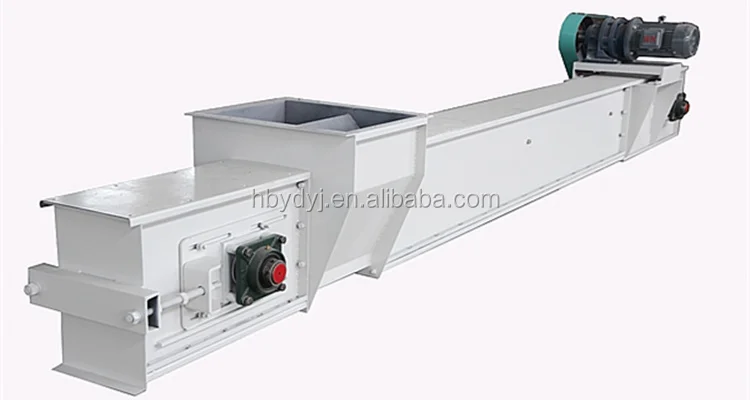

Unique Design MC Series Chinese Redler En Masse Conveyor
for Conveying Bulk Materials
En masse conveyor is a kind of conveying equipment which works in a closed rectangular cross section shell, and recurs to the running chains scraper continuous transport bulk material. Because chains scraper is hided in the conveyed material, it is called “en masse conveyor”.
In level transport of en masse conveyor, the chains scraper get pressure from movement direction and the materials themselves weight influence, the internal friction assures the steady mode among batch layers, ant it can overcome the external friction which gets from the materials movement in closed trough, at last, form the continuous whole stock trough to be transport.

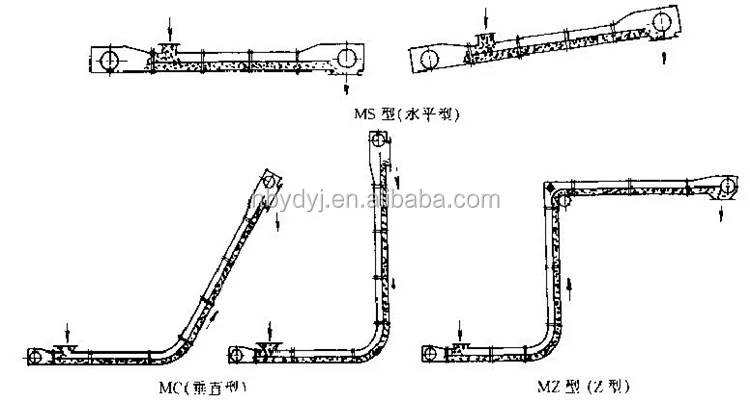

MC series en masse conveyor is the type of perpendicular and big oblique angle conveyor, and the oblique angle a from 30 degrees to 90 degrees, the biggest promote height is 30 m. This conveyor also has many advantages, such as its volume is small, the decoration is vivid and so on.
There are 8 kinds of conveyors in this series, and the biggest conveying capacity can reach to the 300 m3/h.
1) Simple structure in linear type ,easy in installation and maintation.
2) Scraper conveyor
3)Full-closed structure 4)Horizontal & inclined transport of bulk material 5)Conveyor length up to 80m.

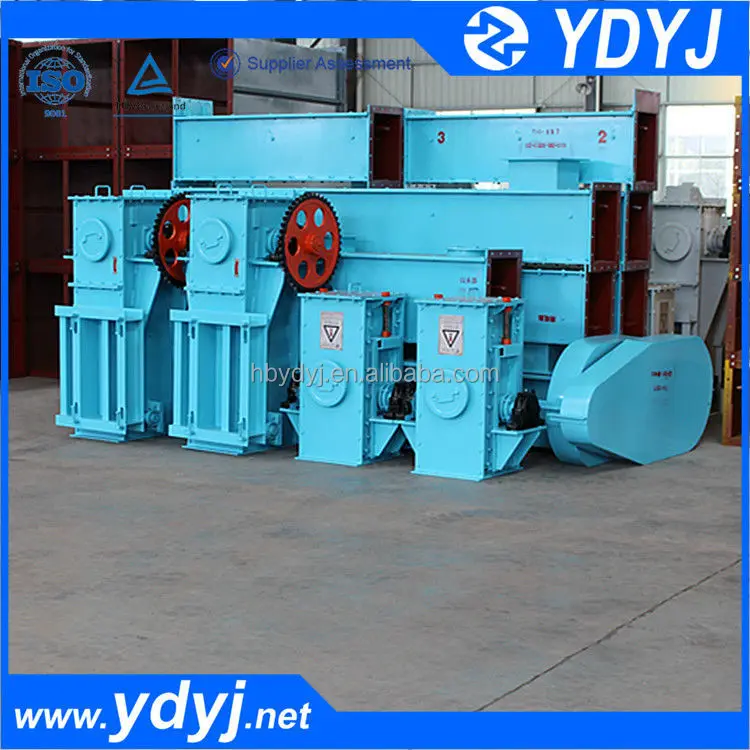

Name: Head Part
It includes wheel, shaft, bearing, bearing seat and so on. The wheel is composed of a wheel hub and a toothed plate, and the toothed plate can be replaced by a bolt, so that the maintenance is convenient.It has the discharge port.

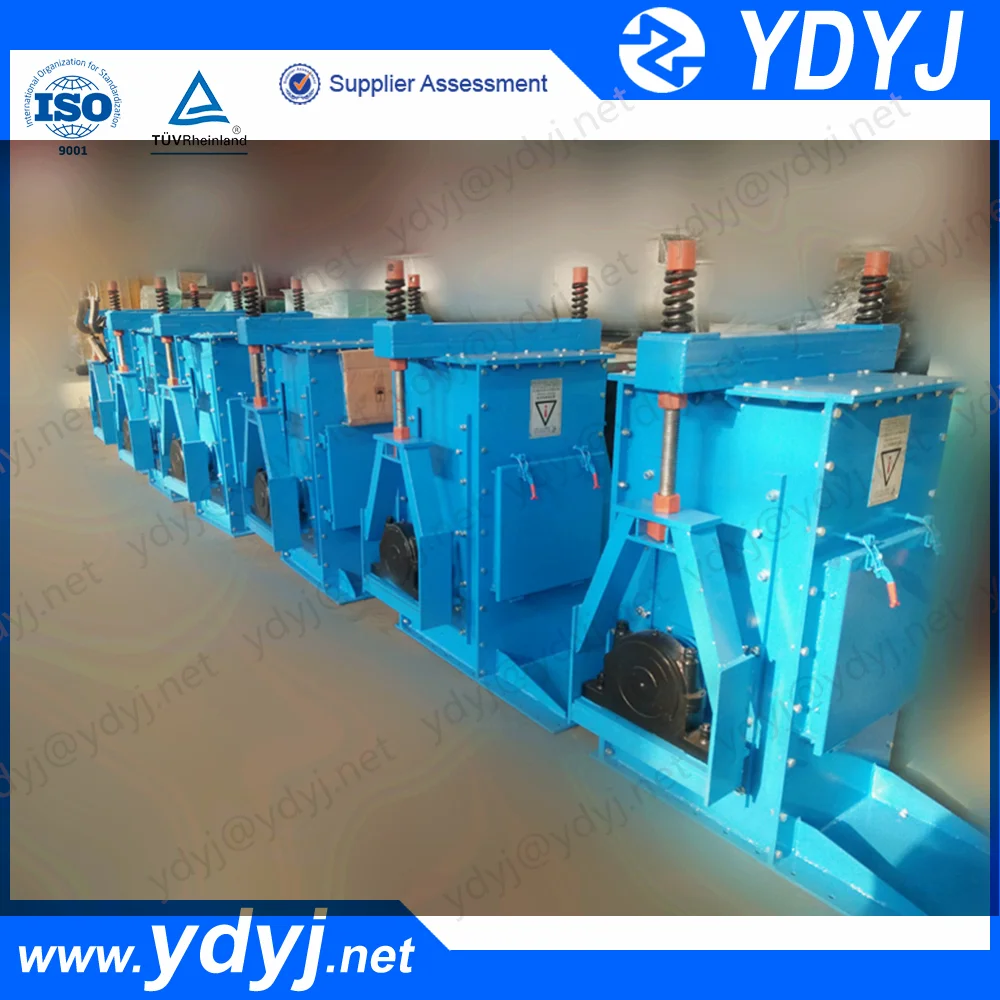

Name: Tail Part Brand: YIJI Original: China It includes wheel, shaft, bearing, bearing seat and so on, It has a crew thread tension and can adjust the length of scraper chains.The tail shaft is provided with a speed sensor, the sensor will obtain the speed signal to the control system, to achieve the function of security protection.
Name: Scraper Chains Brand: YIJI Original: China Forged chain, with high strength,wear-resistant and fine welding craft.
It is the key part of conveyor, and the chain link must be heat treatment.
Technical Parameter of Redler En Massse Conveyor
Max conveying distance(m)
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
600(L) * 300 (W) *270 (D)
The normal package is Iron Frame (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
600 (L) * 300 (W) * 270(D)
The normal package is Iron box (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
