China Professional Rotary valve feeder for silo

FOB Reference Price:Get Latest Price
$200.00 - $3,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
TX200~1000
Application:
General, Flour mill
Material:
Casting
Temperature of Media:
High Temperature
Pressure:
Low Pressure
Power:
motorized
Media:
bulk material
Port Size:
Square or customized
Structure:
Control
Square gate:
250~500mm
Installation:
Both sides are flanges and bolt connection.
Applicable medium:
Bulk material
Certification:
ISO,TUV
Color:
Customer's Request
Product name:
Rotary Valve feeder
Connection type:
flanges connected by bolts
Body material:
cast-ironed or carbon steel
Valve type:
Rotary Valve
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, yichang,guangzhou
Lead Time :
Shipped in 10 days after payment
Product Description

China Professional Rotary valve feeder for silo


Product Application

Rotary Valve feeder is applicable to power plants, cement plants, chemical plants and other industries as conveying material system, to convey dry powder material air lock or quantitative feeding. It can also be used for dust collector and air preheaters bucket to discharge the ash, it is ideal accessory transport to unloading and batching system.

Product Function

Rotary Valve feeder is used to prevent the coal dust or ash particle not happen air channeling phenomenon, maintain the powder flow smoothly from a pressure range into another pressure range, The upper and lower flanges may be either square or circular, the two dimension is the same in most cases..

Rotary Valve Feature

1, Cycloid pin wheel reducer, the transmission mechanism is simple and reliable.
2, Rotary Valve body material is made of cast iron, high temperature wear resistance, not easy to deformation because of temperature changes.
3, Rotary Valve feeder bearing and bearing housing are away from the body, the dust is not easy to enter inside the bearing, and can reduce the influence of bearing material with high temperature, long service life.
4, The internal star impeller made of 45# steel or Stainless steel, wear resistance.
Certifications
Detailed Images

Machine Parts

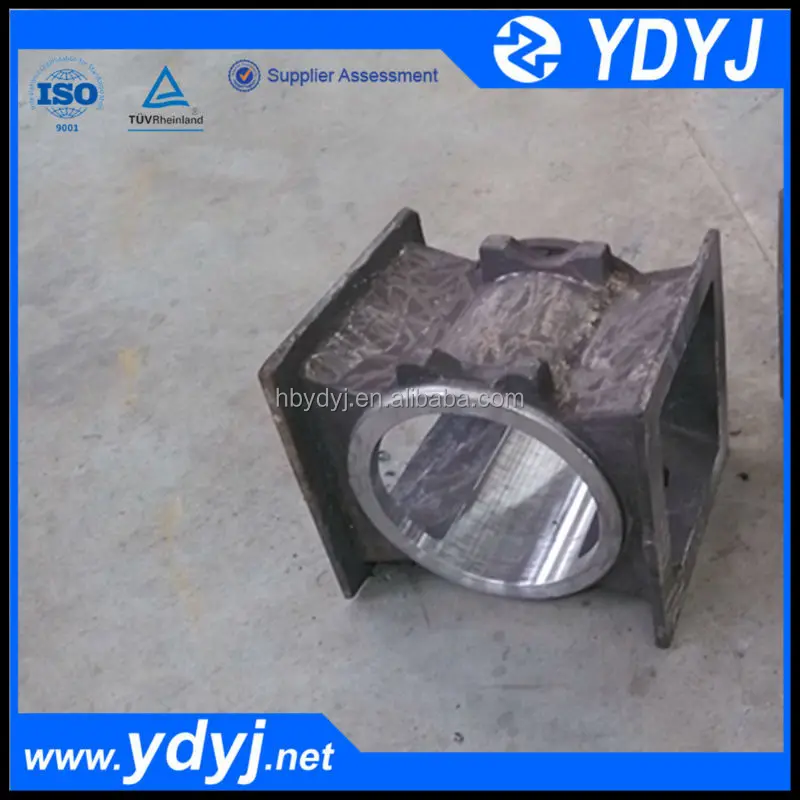

Name: Cast iron body

Brand: YIJI

Original:China

Cast iron valve body is a whole casting structure, good sealing performance,

Main Features

Name: Rotary Valve
Brand: YIJI
Original: China

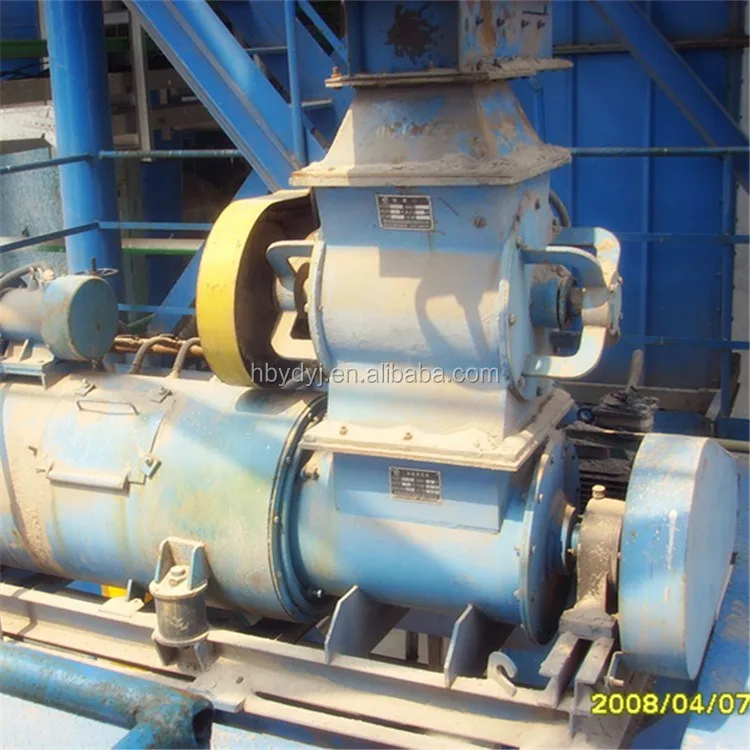

For uniform discharge or uniform feeding device in a variety of occasions, It is mostly installed under the Silo to discharge.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T

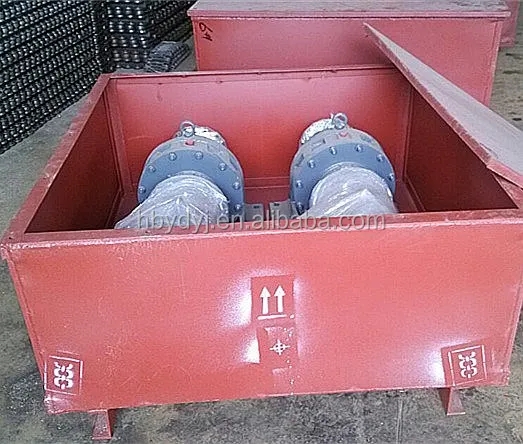

Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
Product Display
