belt bucket elevator, ring chain bucket elevator, plate chain bucket elevator

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
bucket elevator
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
35~185 t/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
TH315~630
Voltage:
380v or customized
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001:2008
Trough width:
315~630mm
Chain speed:
1.4~1.5 m/s
Lifting height:
5~60 m
Chain material:
alloy steel
Ring chain type:
M112~315B
Product name:
Ring chain and plate chain bucket elevator
Application:
crushed material
paint color:
as customer request
Structure design:
flange structure and bolt connection
conveyor name:
belt bucket elevator
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 20 days after payment

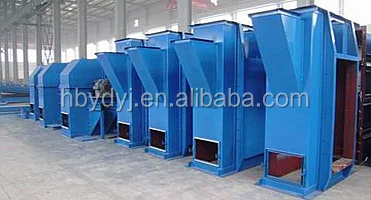

Product Description

 ring chain bucket elevator, plate chain bucket elevator ,

belt bucket elevator

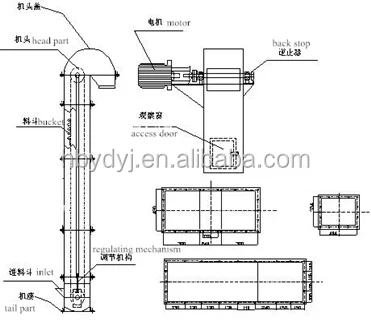

TH series Bucket Elevator is designed and manufactured according to the national standard, with the round link chain as the dragging chain. There are two type of buckets: ZH type,(middle-deep bucket), generally suit for conveying those wet, easy to agglomerate, hard to thrown out materials, such as wet sand, foundry sand, fertilizer, alkali powder, etc. SH type (deep bucket) generally suit for conveying those dry, loose and easy to throw materials, such as cement, gravel, coal etc.

Specification

1. The Nation Standard maker of TH bucket elevator.
2. WIth a large capacity.
3. Carbon steel structure.
4. ISO,TUV, SEW, FLENDER.

Product Application

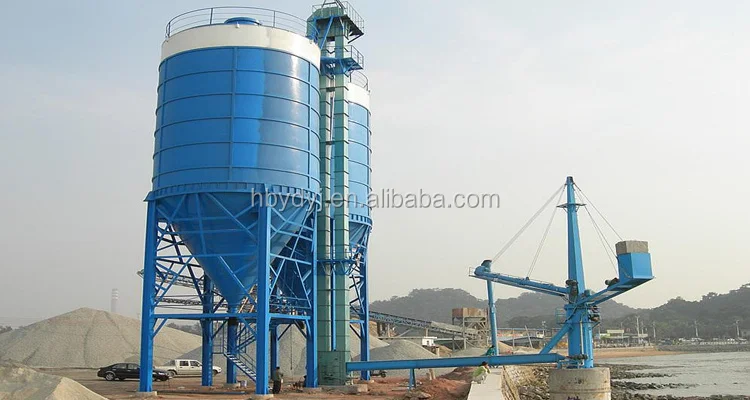

Bucket elevator has become a widely used equipment for bulk material transportation, it is widely used in metallurgy, building materials, electric power, chemical, cement, coal, port, wharf, mine, oil, food, feed and other industries.

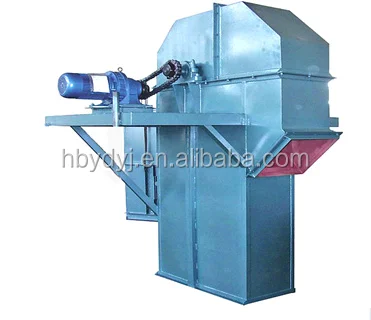

Main Features

1. Bucket elevator with Simple structure ,easy in installation and maintation.
2.The heat resistant steel as the main parts make it handle high temperature big bulk density materials.
3. Running in a high automatization.
4. Can be loaded and unloaded on multiple points.

Technical Parameters of TH Bucket Elevator

Equipment Type

TH315

TH400

TH500

TH630

Bucket type
Zh
Sh
Zh
Sh
Zh
Sh
Zh
Sh
Capacity(m3/h)
35
59
58
94
73
118
114
185
Capacity (L)
3.75
6
5.9
9.5
9.3
15
14.6
23.6
Bucket distance(mm)
512
512
512
512
688
688
688
688
Diameter* pitch (mm)

Φ18*64

Φ22*86

Chain Broken load(KN)
≥320
≥320
≥320
≥320
≥480
≥480
≥480
≥480
Bucket speed (m/s)
1.4
1.4
1.4
1.4
1.5
1.5
1.5
1.5
Driving wheel speed (rpm)
42.5
42.5
42.5
42.5
35.3
35.3
31.8
31.8
Detailed Images

Machine Parts

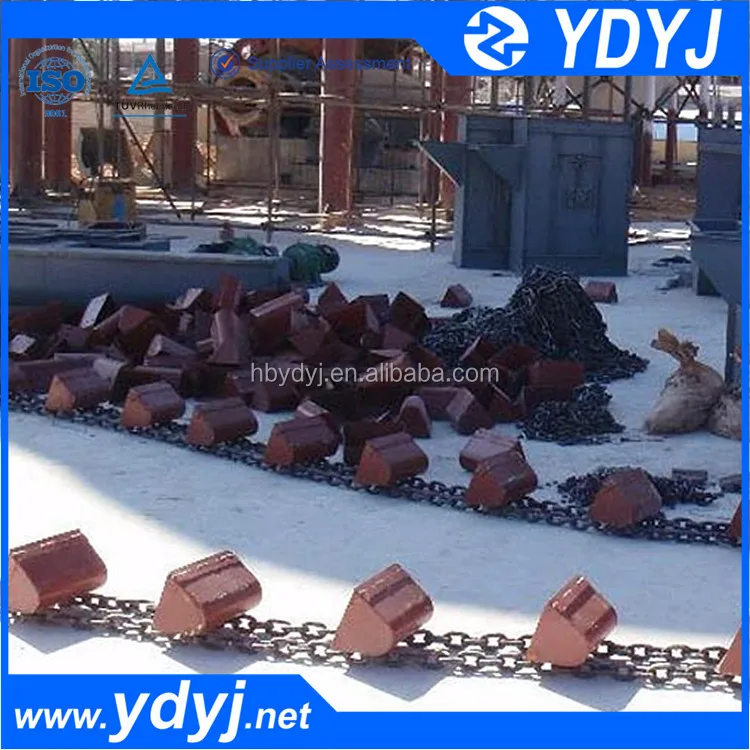

Name: Chain

Brand: YIJI

Original: China

1. Take tempering, carburizing and other heat treatment, improve wear resistance.
2. High quality stainless steel or customized material.
3. With high temperature resistance and high tensile strength.

Main Features

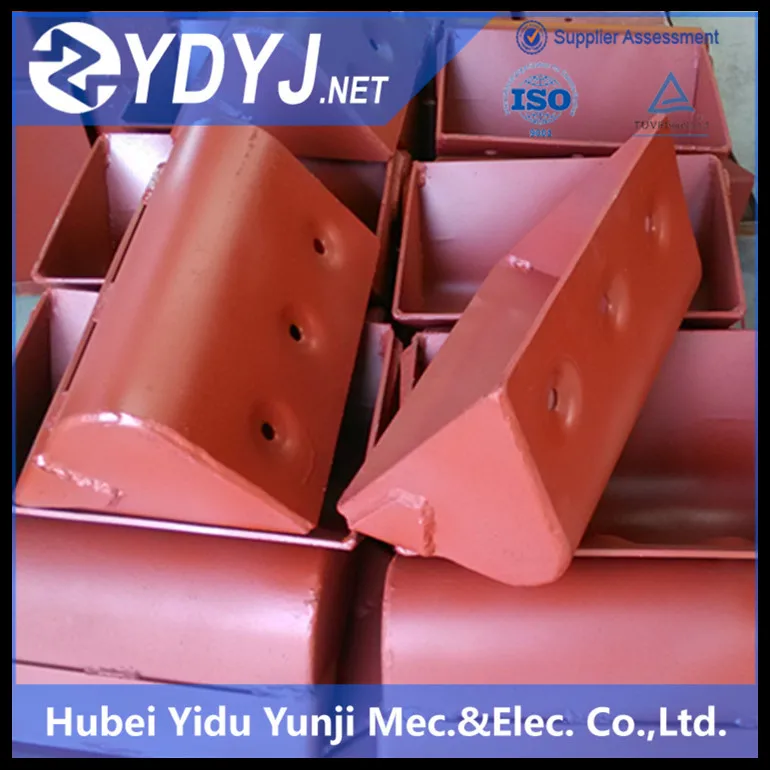

Name: Buckets
Brand: YIJI
Original: China

1. Carbon steel or customized material.

2. With high temperature resistance and high tensile strength.

3. Wear resistance.


Certifications
Protection device

Plugging alarm device

Device Type: A059

Switch Type: Limit switch

It is installed on the end cover plate of the head. When the material height exceeds the set value, the alarm signal is sent out to control the height of the material layer.(See red part in the picture.)

Speed Sensor

Device Type: A032
Switch Type: Proximity switch
 It is installed in the tail of the tail shaft and tail shaft to rotate together. When the speed exceeds the set range, it transmits a signal to the control system, so as to control the start and the stop of the motor to protect the equipment operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
