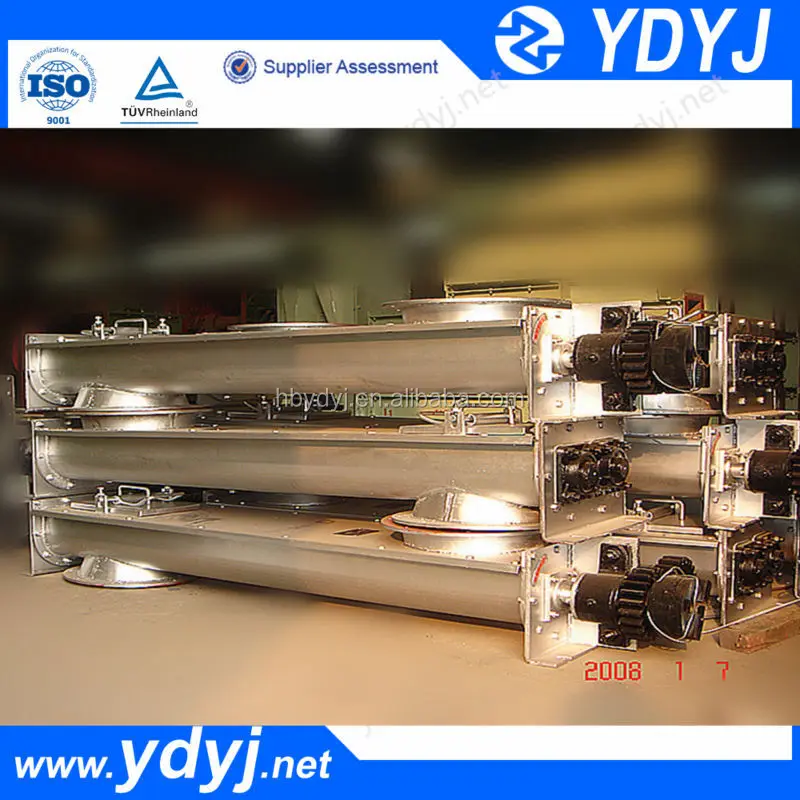

Screw Conveyor Machine, Screw Conveyor Price, Spiral Cement Conveyor

FOB Reference Price:Get Latest Price
$2,000.00 - $2,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw Conveyor
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
screw conveyor
Load Capacity:
1.1~280 m3/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
GX150~600
Voltage:
220V/380V
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO
Screw diameter:
100~630mm
screw Pitch:
100~580mm
Rotational speed:
16~140 rpm
Capacity:
5 ~480m3/h
Installation:
Flanged structure,bolt connection.
Application:
all the bulk material
Model number:
screw conveyor
Usage:
screw conveyor
paint color:
yellow or customized
Product name:
screw conveyor
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing for screw conveyor(Wooden case, carbon case or pallet).
Port
Shanghai,Tianjin,Qingdao
Lead Time :
Shipped in 15 days after payment
Product Description

Screw Conveyor Machine, Screw Conveyor Price,

Spiral Cement Conveyor


Description

1.Screw conveyor with Simple structure,good sealing,large capacity
2.Low noise, strong adaptability and easy operation
3. Easy for maintenance and long service life
4.ISO,TUV,SEW.FLENDER

Working principle

When the drive device starts, the helical blade in the case push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.

Application

1. Power plant, grain or oil,chemical, metallurgical, paper making and so on.
2. Powder material: Cement, concrete, coal dust, soda ash, flour, grain, paper pulp, etc.

Technical Parameters of Screw Conveyor

Type
LS160

LS200

LS250

LS315

LS400

LS500

LS630

LS800

LS1000

Screw diameter  (mm)
160

200

250

315

400

500

630

800

1000

Pitch (mm)
160

200

250

315

355

400

450

500

560

Rotational speed  (rpm)

56-112

50-100

45-90

40-80

36-71

32-63

25-50

20-40

16-32

Capacity (t/h)
3.1-7

6.31-3

11~22

16-34

31-62

50-98

77-140

126-200

140-280

Main Features

1. Simple structure, good sealing, good quality ,large capacity, easy operation and low power invest cost.                            2. Working temperature is -20~50°C, with material temperature below 2000C.                                                                           3. Axle head and conveying spiral adopt spline connection, with features of convenient mounting&diassembling, large load capacity and stability.                                                                                                                                                                      4. All sections of screw conveyor are connected with flange. Screw blades are integral connection.                                     5. Inlet and outlet chutes have many kinds of connections, such as flange, sack, universal joint, etc.

Certifications
Detailed Images

Machine Parts

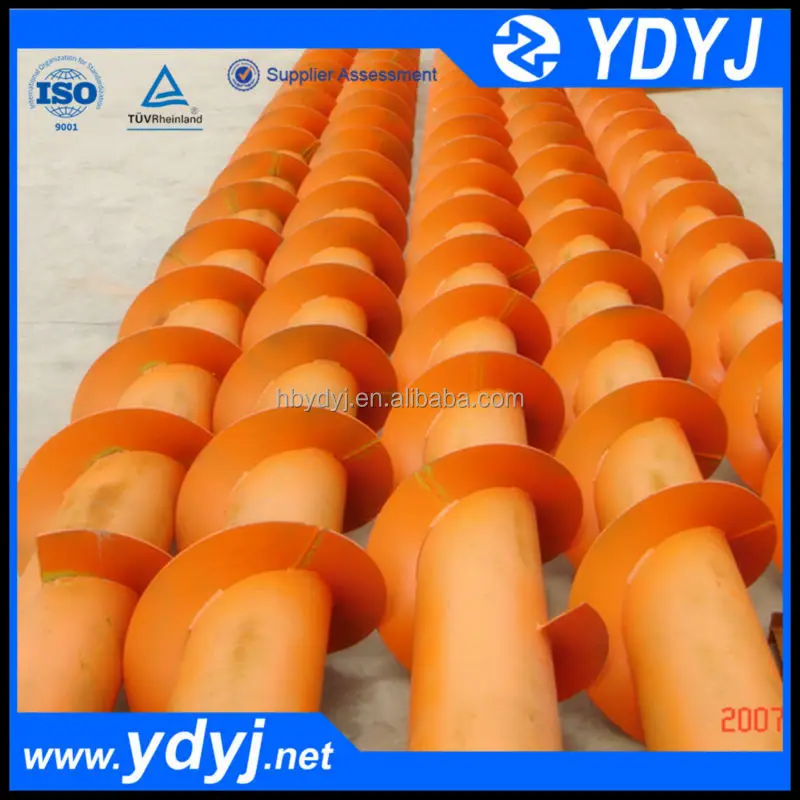

Name: Screw Blade

Brand: YIJI

Original: China

Screw blade consists of three forms, the solid, the belt and the spiral surface of the blade.This continuous cold rolled screw blade, which has the advantages of smooth surface, high hardness, wear resistance, one time forming, continuous no weld.

Main Features

Name: Screw casing
Brand: YIJI
Original: China
We use the steel plate bending, then the housing roughly molding, and edges with angle steel production, in each section of the shell connection is the use of angle steel bending made, to ensure the overall stability of U-shaped screw conveyor .

Machine Parts

Name: Tail section
Brand: YIJI
Original: China
Tail section contains U-shaped casing, bearing assembly, tail shaft, discharge port, observation door and other parts.


Main Features

Name: Head section
Brand: YIJI
Original: China
Head section contains U-shaped casing, bearing assembly, head shaft, inlet port, observation door and the driving device.The driving device consists of motor and reducer, according to the assembly in different ways, it is divided into direct, right and left with three.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details
The closed package is iron box(Size: L*W*H).
Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10 T



Packaging Details

The Non standard package is iron frame(Size: L*W*H).                                            We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
