High efficiency movable carbon steel frame PVC belt conveyor

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
belt conveyor
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
25~240t/h
Place of Origin:
Hubei, China
Brand Name:
YIJI
Model Number:
RMS25~RMS80
Voltage:
380v or customized
Power(W):
1.5~160kw
Dimension(L*W*H):
Specific Models
Certification:
ISO9001:2008
Trough width:
250/320/400/500/630/800
Chain speed:
0.2~0.32m/s
Transportation length:
0~80 m
Chute width:
250~800mm
Scraper chain type:
S30-DT,Z30-DT
Motor voltage:
customized
Application:
crushed material
paint color:
as customer request
Structure design:
flange structure and bolt connection
conveyor name:
belt conveyor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Packing(Wooden Case, Carbon Case and Pallet),it is suitable for long distance ocean transportation.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 15 days after payment
Product Description

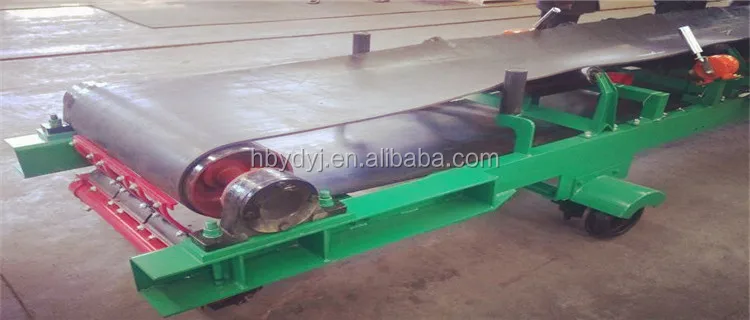

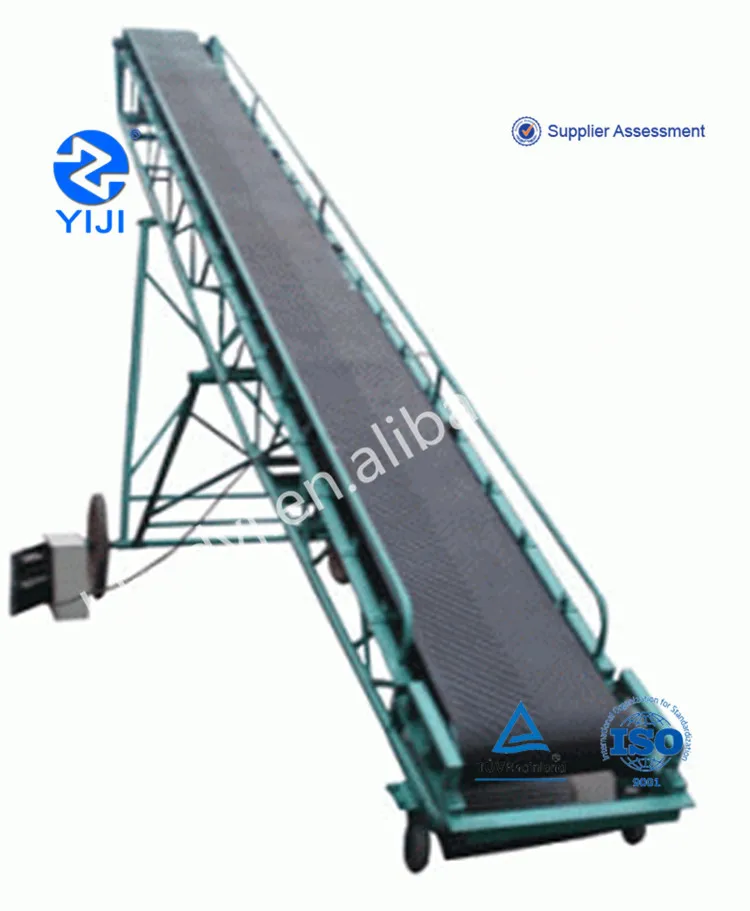

High efficiency movable carbon steel frame PVC belt conveyor

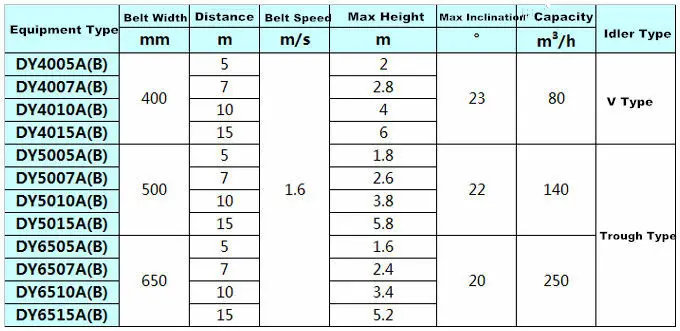

Specification

1. The Nation Standard maker of belt conveyor.
2. WIth a large capacity.
3. Full-closed structure.
4. Conveyor length up to 80 m.
5. ISO,TUV, SEW, FLENDER.

Operating Principle

The Belt Conveyor is driven by the motor and reducer, and transport the materials by the continuous movement of the PVC belt.

Product Application

Belt conveyor has become a widely used equipment for bulk material transportation, it is widely used in metallurgy, building materials, electric power, chemical, cement, coal, port, wharf, mine, oil, food, feed and other industries.

Main Features

1. Belt conveyor with Simple structure ,easy in installation and maintation.
2.The heat resistant steel as the main parts make it handle high temperature big bulk density materials.
3. Running in a high automatization.
4. Can be loaded and unloaded on multiple points.

Detailed Images

Main Features

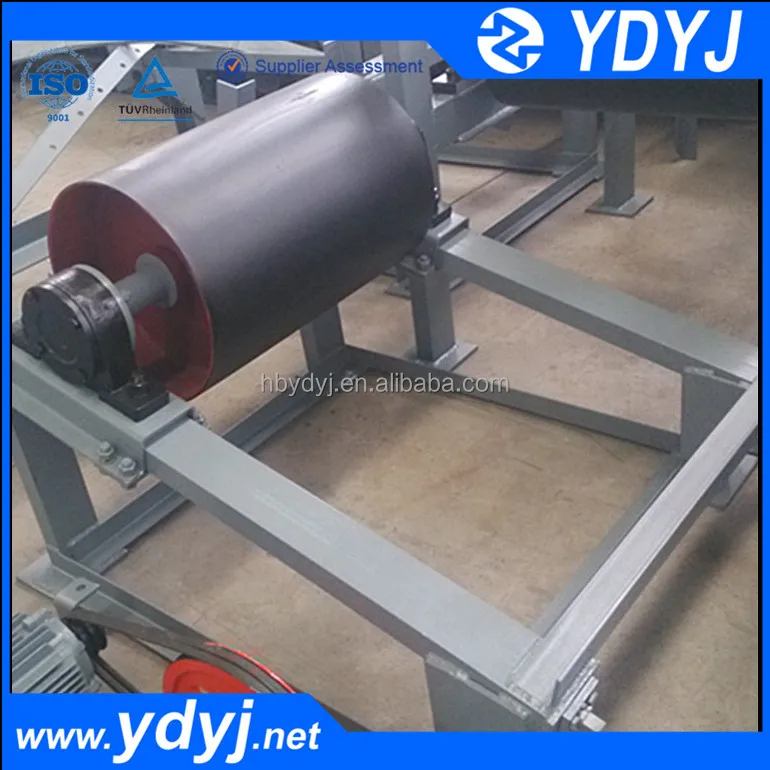

Name: Roller
Brand: YIJI
Original: China
.

Machine Parts

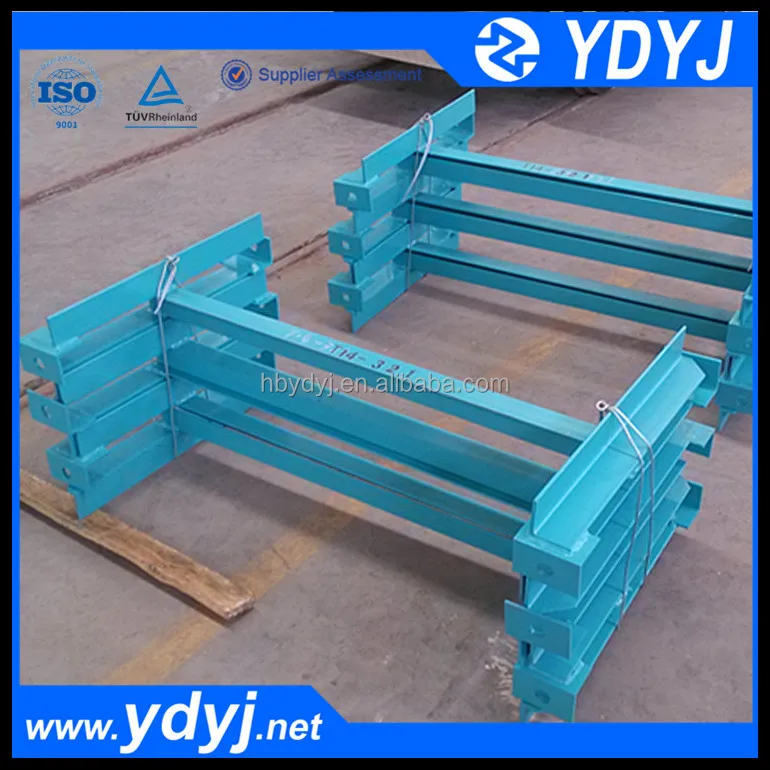

Name: Frame
Brand: YIJI
Original: China

Certifications
Protection device

Plugging alarm device

Device Type: A059

Switch Type: Limit switch

It is installed on the end cover plate of the head. When the material height exceeds the set value, the alarm signal is sent out to control the height of the material layer.(See red part in the picture.)

Speed Sensor

Device Type: A032
Switch Type: Proximity switch
 It is installed in the tail of the tail shaft and tail shaft to rotate together. When the speed exceeds the set range, it transmits a signal to the control system, so as to control the start and the stop of the motor to protect the equipment operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details

The closed package is iron box(Size: L*W*H).

Use the iron box to pack the parts that need to be protected, such as electric motors, speed reducer, electrical control equipment and so on. We also can packe it according to customers special request.

Packaging
Size
600(L) * 300 (W) * 270 (D)
Weight
10T



Packaging Details
The Non standard package is iron frame(Size: L*W*H).
We use the iron frame to package some overall and larger components, such as the head, tail, middle section. We can pack it according to customers special request.
